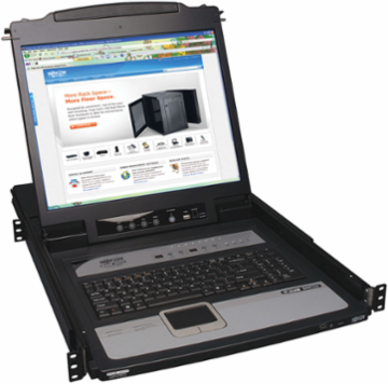

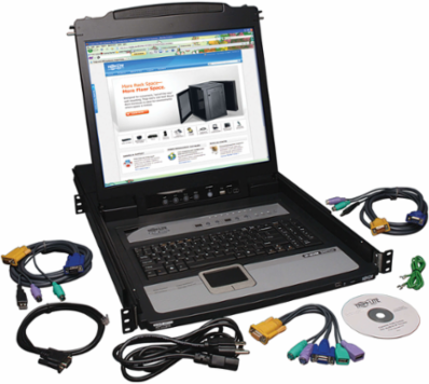

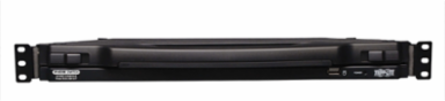

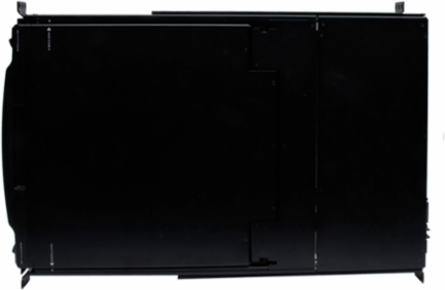

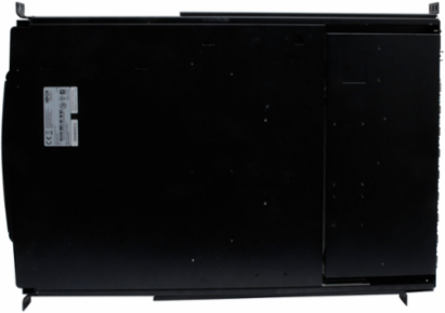

Tripp Lite B020-U08-19-IP 8-Port Rack-Mount KVM Switch with 19 Inch LCD, IP Access & Daisy-Chaining
- MPN: B020-U08-19-IP
- UPC: 037332152886
- PPN: TRP-B020-U08-19-IP
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control up to 8 computers from anywhere in the world with a single KVM switch with integrated console and IP remote access. This KVM switch is a smart solution for secure server control that saves rack space and money.
Features
- Control computers/servers locally or via LAN, WAN or Internet
- Occupies just 1U of space in a rack-mountable drawer
- 19” LCD screen supports video resolutions up to 1280 x 1024
- Allows up to 64 user accounts, with multi-level security
- Compatible with all operating systems
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
- Ports
- 8
- Autoscan Duration
- 1-255 seconds
- Input Current
- 120V (0.8A) / 230V (0.4A)
- Operating Temperature
- 0 to 50 C (32 to 122 F)
- Relative Humidity
- 0 to 80% RH, Non-Condensing
- Remote Monitor Resolution
- 1600 x 1200 @ 60Hz
- User Accounts
- 1 (manufacturer) with 3 levels of access (AI)
- Rack Unit Size
- 1U
- Device Weight
- 31 lbs
- Connectivity
- PS/2, USB, VGA
- Housing Color
- Black
- Network Protocols
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX
Max CPUs Controlled8 local, expandable to 256 via daisy-chaining
Input Voltage100-250V AC, includes 100V AC to 240V AC nominal
Input Frequency50/60Hz
Storage Temperature-20 to 60 C (-4 to 140 F)
Video Resolution1280 x 1024 @ 75Hz
Port ControlPush Buttons, Hotkeys, OSD
LCD Size19 in.
Device Dimensions1.73 x 18.9 x 27 in.
MountingRack-mount, 19 in wide, 26 to 38 in depth
Housing MaterialSteel
CertificationsUL 60950-1, cUL, CAN/CSA, FCC Part 15 Class A, CE, RoHS, EN 60950-1
Encryption512-bit RSA, 256-bit AES, 56-bit DES, 168-bit 3DES, 128-bit RC4, 128-bit SSL
