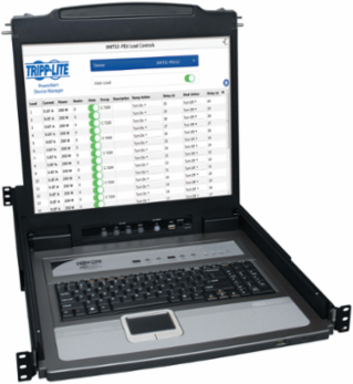

Tripp Lite B020-U08-19KTAA 8-Port KVM Switch with 19 Inch LCD, 1U Rack-Mountable Design

MPN: B020-U08-19KTAA
UPC: 037332158048
PPN: TRP-B020-U08-19KTAA

$3994.03

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Control up to 8 computers with one KVM switch with integrated console. This KVM switch is a smart solution for centralized server control that saves rack space and money. And, it’s TAA compliant for GSA Schedule purchases.

Features

Occupies just 1U of space in a rack-mountable drawer
19” LCD screen supports video resolutions up to 1280 x 1024
Simplifies IT tasks with easy switching between all 8 ports
Provides 2-level password security (administrator and user)
Combo cables connect to PS/2 or USB servers, no adapter needed
1-year limited warranty

Documentation & Downloads

Specifications

Additional

Input Voltage	100-240V AC
Input Current	0.8A @ 120V, 0.4A @ 230V
Ports	8
Video Resolution	1280 x 1024
LCD Size	19 in
Dimensions (H x W x D)	1.75 x 17 x 27 in (4.45 x 43.18 x 68.58 cm)
Mounting	19 in wide rack, 26-38 in deep
Included Mounting Accessories	Yes
Security	2-level password security (administrator and up to 4 users), two-level log-out manual or automatic
Auto-Scan	Yes
PC/Server Connections	PS/2, USB, VGA
Operating Temperature	32 to 120 F (0 to 50 C)
Certifications	UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1
Color	Black

Input Frequency	50/60 Hz
Power Consumption	28.5W @ 120V, 29.1W @ 230V
Computer/Server Ports	(x8) HD18 Female
Number of Users	1
Rack Unit Size	1U
Weight	30.6 lbs (13.88 kg)
Material	Steel housing
Port Control	Push Buttons, Hotkeys, OSD
Hot-pluggable	Yes
Firmware Upgrade Port	RJ45 Female
Relative Humidity	0 to 80% RH Non-condensing
Storage Temperature Range	-4 to 140 F (-20 to 60 C)
Compliance	UL, cUL, CE, FCC, RoHS, TAA
