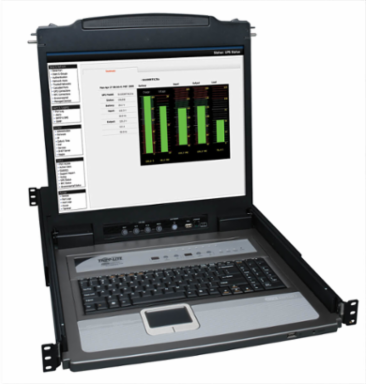

Tripp Lite B020-U08-19-K 8-Port 1U Rack-Mount KVM Switch with 19 Inch LCD, HD15/USB/PS2 Ports
- MPN: B020-U08-19-K
- UPC: 037332150776
- PPN: TRP-B020-U08-19-K
CAD
$3601.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Control up to 8 computers with a single KVM switch with integrated console. This KVM switch is a smart solution for secure and centralized server control that saves rack space and money.
Features
- Occupies just 1U of space in a rack-mountable drawer
- 19” LCD screen supports video resolutions up to 1280 x 1024
- Simplifies IT tasks with easy switching between all 8 ports
- Provides 2-level password security (administrator and user)
- Combo cables (included) connect to PS/2 or USB servers
- 1-year limited warranty
Documentation & Downloads
Specifications
Additional
- Ports
- 8
- Input Voltage
- 100V AC to 240V AC
- Input Frequency
- 50/60 Hz
- Technology
- PS/2, USB, VGA/SVGA
- LCD Size
- 19 in.
- Unit Dimensions (HxWxD)
- 1.75 x 17 x 27 in.
- Unit Weight
- 30.6 lbs
- Operating Temperature Range
- 32 to 120 F (0 to 50 C)
- Relative Humidity
- 0 to 80% RH, Non-condensing
- Included Mounting Accessories
- Yes
- Included Accessories
- RJ11 to DB9 firmware upgrade cable, grounding wire, rackmount hardware, USB/PS2 combo console cable kit, C13 to 5-15P power cord
- Port Control
- Push Buttons, Hotkeys, On-Screen Display
- Compatibility
- All major operating systems
- Certifications
- UL 60950-1, CAN/CSA, FCC Class A, CE, IEC 60950-1
- Color
- Black
Computer/Server Ports(x8) HD18 Female
Input Current0.8A at 120V, 0.4A at 230V
Power Consumption28.5W at 120V, 29.1W at 230V
Max CPU8
Video Resolution1280 x 1024
Shipping Dimensions (HxWxD)5 x 26.1 x 32.5 in.
Shipping Weight43 lbs
Storage Temperature Range-4 to 140 F (-20 to 60 C)
MaterialHeavy-duty steel housing
Included CablesP778-006 USB/PS2 combo (x8), HD18 Male, PS/2 Male, USB A Male
Firmware Upgrade PortRJ45
SecurityMulti-level password (administrator and up to 4 users)
ApprovalsUL, cUL, CE, FCC, RoHS
Warranty1-year limited warranty
Max ExpandabilityUp to 256 computers via daisy-chaining 31 B022-U08 KVM switches
