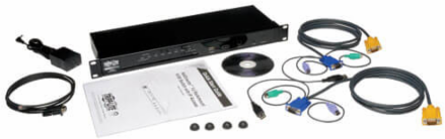

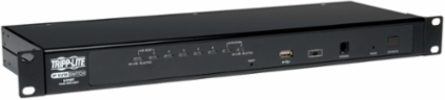

Tripp Lite B022-U08-IP 8-Port 1U Rack-Mount IP KVM Switch, PS/2 & USB Connectivity, Remote Access, 3-Year Warranty
- MPN: B022-U08-IP
- UPC: 037332177049
- PPN: TRP-B022-U08-IP
CAD
$1925.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8-Port 1U Rack-Mount IP KVM Switch, PS/2 & USB Connectivity, Remote Access, 3-Year Warranty
Features
- Directly control up to 8 computers on a single KVM switch or up to 256 computers as part of a daisy-chain
- Remotely access computers via LAN, WAN or Internet via the Windows or Java browser clients
- Supports both IPv4 and IPv6
- Supports RADIUS and LDAP/S authentication
- 3-level security (Admin, User and Select) – up to 64 accounts can be created
- Compatible with all major operating systems
- 3-year limited warranty
Documentation & Downloads
Specifications
Additional
- Ports
- 8
- IP Remote Access
- Yes
- Storage Temperature Range
- -20 to 60 C (-4 to 140 F)
- Power Input
- 100-240V, 50/60Hz, 0.5A
- Connectivity
- PS/2, USB, VGA
- Port Control
- Push Buttons, Hotkeys, OSD
- Security Levels
- 3-level (Admin, User, Select), up to 64 accounts
- Video Resolution Local Console
- 2048 x 1536
- Unit Dimensions
- 1.73 x 17 x 6 in
- Max CPU
- 8
- Housing Material
- Heavy-duty steel
- Compliance
- CE, FCC, RoHS, UL Certified External Power Supply
- Product Warranty Period
- 3-year limited
Max Computers Controlled8 (single), 256 (daisy-chain)
Operating Temperature Range0 to 50 C (32 to 122 F)
Relative Humidity0 to 80% RH, Non-Condensing
Power Output5.3V, 2.4A
TechnologyPS/2, USB, VGA/SVGA
Autoscan Duration1-255 seconds
AuthenticationRADIUS, LDAP/S
Video Resolution Remote Console1600 x 1200 @ 60Hz, 24-bit color
Unit Weight6.1 lbs
Mounting1U Rack-Mount
Housing ColorBlack
NIAP-Certified SecureNo
