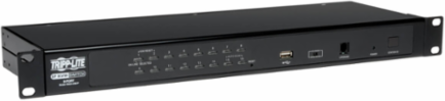

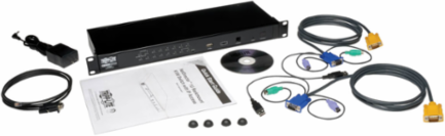

Tripp Lite B022-U16-IP 16-Port 1U Rack-Mount IP KVM Switch with USB/PS2 Connectivity

MPN: B022-U16-IP
UPC: 037332188045
PPN: TRP-B022-U16-IP

$2323.80

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Control up to 16 computers or servers directly from anywhere in the world via LAN, WAN or the Internet with built-in IP remote access.

Features

Built-in IP access from anywhere in the world
Daisy-chain up to 31 additional B022-U08 switches to control up to 264 computers
Works with all major operating systems
Compatible with both USB and PS/2 connections
Enables up to 64 secure user accounts
Space-saving 1U rack-mount installation
3-year limited warranty

Documentation & Downloads

Specifications

Additional

Ports	16
Video Resolution Local	2048 x 1536
Color Depth Remote	24-bit
Storage Temperature Range	-20 to 60 C (-4 to 140 F)
Power Input	100-240V, 50/60Hz, 0.5A
Port Control	Push Buttons, Hotkeys, OSD
Autoscan Duration	1 - 255 seconds
Technology	PS/2, USB, VGA/SVGA
Material	Steel (housing)
Dimensions (HxWxD)	1.73 x 17 x 6 in (4.39 x 43.18 x 15.24 cm)
Security Encryption	128-bit SSL, 128-bit RC4, 1024-bit RSA, 56-bit DES, 256-bit AES, 168-bit 3DES
User Accounts	Up to 64
NIAP-Certified Secure	No
Warranty	3-year limited

Max CPUs Supported	16
Video Resolution Remote	1600 x 1200 @ 60 Hz
Operating Temperature Range	0 to 50 C (32 to 122 F)
Relative Humidity	0 to 80% RH, Non-Condensing
Power Output	5.3V, 2.4A
Autoscan	Yes
PC/Server Connections	PS/2, USB, VGA
Rack Height	1U
Weight	6.5 lbs (2.95 kg)
Authentication Support	RADIUS, LDAP/S Remote
Number of Users	1
IP Remote Access	Yes
Housing Color	Black
