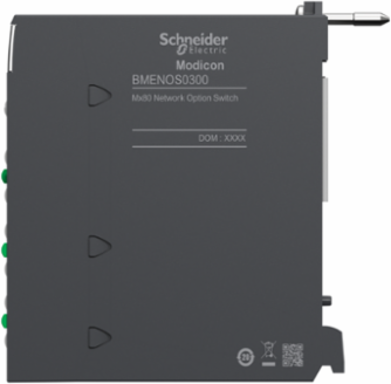

Modicon X80 Switch Module with 3 Ports, IP20, 24V, 4.5W Power Consumption

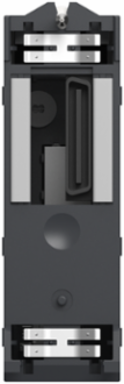

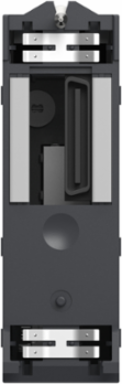

Modicon X80 Switch Module with 3 Ports, IP20, 24V, 4.5W Power Consumption

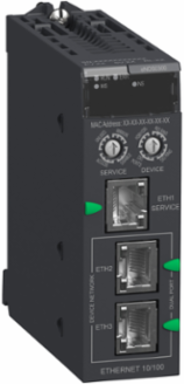

Modicon X80 Switch Module with 3 Ports, IP20, 24V, 4.5W Power Consumption

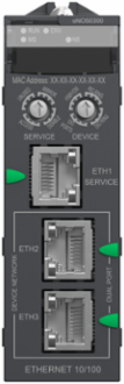

Modicon X80 Switch Module with 3 Ports, IP20, 24V, 4.5W Power Consumption

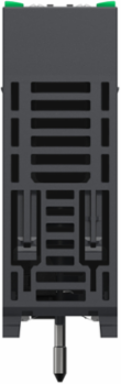

Modicon X80 Switch Module with 3 Ports, IP20, 24V, 4.5W Power Consumption

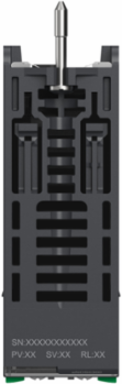

Modicon X80 Switch Module with 3 Ports, IP20, 24V, 4.5W Power Consumption
Schneider Electric

Schneider Electric BMENOS0300 Modicon X80 Switch Module with 3 Ports, IP20, 24V, 4.5W Power Consumption

  • MPN: BMENOS0300
  • PPN: SCH-BMENOS0300
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1201.37

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This network option switch has 3 ports. It is a network option switch with a rated supply voltage of 24V and a power consumption of 4.5W. This product is robust, high quality and based on the latest innovative technology. Integrated connections are EtherNet/IP for device network and service port. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, ABS, BV, GL, EAC, LR, DNV, RINA. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This switch module is compatible with BMEXBP backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, United States

    Communications & Management Attributes

    Communication Port Protocol
    EtherNet/IP

    Complementary Attributes

    Integrated Connection Type
    Ethernet/IP device network, Ethernet/IP service port
    Maximum Altitude Transport3000 m

    Important Information Attributes

    Persona Type Ids
    EU, OM8, SI
    Local Signalling
    1 LED (green) for module active (RUN)1 LED (red) for module error (ERR)1 LED (green/red) for module status (Mod Status), 1 LED (green/red) for network communication status (Net Status)
    Carbon Footprint Of The Distribution Phase [A4]
    0.0336067656, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.1023080859, 0.1 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
    147 kg CO2 eq., 147.16
    Local Publishable Date
    2026-07-27
    Stocking Flag
    Y
    Device Type
    PLC System - PLC Component
    Traceability
    Yes
    Average Life Duration
    20 year(s)
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2402021EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    2438
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Market Segmentation
    Industrial
    Marking
    CE
    Number Of Port
    3
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Range Of Product
    Modicon X80
    Software Version
    v5.9.4
    Total Lifecycle Carbon Footprint
    165 kg CO2 eq.
    Database Version
    2022-01
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    The Ethernet control router enables communication from the control network to the device network. This module as the Modicon M580 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 4.125W (1800 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201
    Functional-unit Unit
    Unit
    Energy Consumption On Product Lifetime In Kwh
    260.172
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    [Us] Rated Supply Voltage
    24 V back plane
    Package Weight(Lbs)
    257.000 g
    Warranty (In Months)
    18
    Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
    147.16
    Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
    2028.96
    Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
    108.936
    Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6]
    12986.4
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    3004.64
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    435.288
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    3004.64
    Water Use (M3 Eq) Operational Energy Use [B6]
    56196
    Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
    Power Consumption In W3.3 W 135 mA 25 °C, 4.5 W 185 mA 60 °C
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4 kg CO2 eq., 0.413609375
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 17.504109375
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy1
    ServiceabilityNo
    Field Service DivisionIDIBS
    Use Carbon Footprint147.16
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Module Formatstandard
    Overvoltage CategoryII
    Product Or Component Typeswitch module
    ReturnabilityNo
    Sustainable PackagingNo
    Pep CodeENVPEP2402021EN
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; FR
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; AUS
    Recyclability Potential In %32
    Nbr. Of Units In Pkg.1
    Take-backNo
    Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]147.032
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]3004.64
    Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]17544.8
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]22723.2
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Installation [A5]10649.4375
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]3439.92
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]10649.4375
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]435.288
    Customs Code8517620090

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-85 °C, -40-85 °C
    Operating Altitude
    <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ambient Air Temperature For Operation
    0-60 °C
    Environmental Disclosure
    ENVPEP2402021EN
    Ip Degree Of Protection
    IP20
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP2402021EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Directives2014/35/EU - low voltage directive, 2014/30/EU - electromagnetic compatibility
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint165.2136336016
    Circularity ProfileENVEOLI2402021EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Product CompatibilityBMEXBP... backplane
    Relative Humidity95-95 % without condensation
    Pep Verification Date2023-11-01
    Psr VersionPSR-0005-ed2-2016 03 29

    General Attributes

    Product Or Component Type
    switch module
    Range Of ProductModicon X80

    ETIM

    ETIM 8
    EC000734
    ETIM 9EC000734
