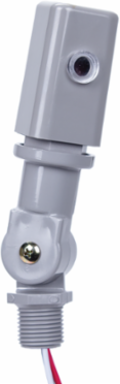

Intermatic EK4236S NIGHTFOX 120-277V Photocontrol with Stem and Swivel Mount
- MPN: EK4236S
- UPC: 078275146303
- PPN: INT-EK4236S
- UNSPSC: 39121524
CAD
$39.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within outdoor-rated electrical enclosures, in-wall junction boxes, or lighting fixtures. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. The unit mounts externally and requires a minimum enclosure aperture of 7/8" in diameter. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.
Features
- Non-drift silicon light sensor with IR filter
- DC relay with zero-crossing circuitry for extended life
- Conformal coated PCB
- 15-year design life
- Exceeds 10,000 ON/OFF switching cycles
- Fail ON mode
- Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
- 255 J MOV surge protection element
- 1⁄2"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter
- #18 AWG wire leads
Documentation & Downloads
Specifications
Additional
- Voltage
- 120-277 VAC, 50/60 Hz
- Wire Gauge
- 18 AWG
- Surge Protection
- 255 J MOV
- Thread Size
- 1/2-14 NPSM
- Width
- 1.313 in
- Wire Leads Length
- 9 in
- Country of Origin
- Mexico
Power Capacity1650 W @ 277 VAC
Operating Cycles10,000 ON/OFF switching cycles
Warranty Period8-Year limited
Height5.625 in
Depth1.25 in
ColorGray
