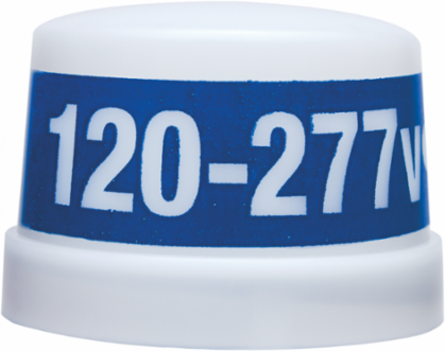

Intermatic LED4536SC Specifier Grade Locking Electronic Photocontrol, 120-277 V
- MPN: LED4536SC
- UPC: 078275143647
- PPN: INT-LED4536SC
- UNSPSC: 39121524
CAD
$48.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Photocontrol specifically designed for 20-year service to match the life expectancy of long-life LED and new induction fixtures.
Features
- Non-drift silicon light sensor with IR filter.
- DC relay with zero-crossing circuitry for extended life.
- All components meet 20-year life expectancy.
- Conformal coated PCB.
- Exceeds 15,000 ON/OFF switching cycles.
- Ideal for single or multi-fixture HID and LED installations (up to 2,220 W @ 277 VAC).
- 510 J MOV surge protection.
- High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched.
Documentation & Downloads
Specifications
Key Specifications
| Input Voltage Rating Range(s) | 120-277 VAC, 50/60 Hz (Nominal Voltage) |
|---|---|
| Color | White with Blue Band |
| Marketing Description | Photocontrol specifically designed for 20-year service to match the life expectancy of long-life LED and new induction fixtures. |
| Country of Origin | Mexico |
| Warranty Period | 12-Year limited |
|---|---|
| Applications | Outdoor Lighting Control |
| Height | 2.75 in |
