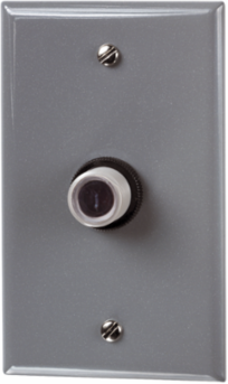

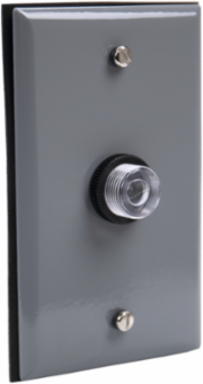

Intermatic EK4336S NIGHTFOX Electronic Photocontrol, 120-277 V

MPN: EK4336S
UPC: 078275148314
PPN: INT-EK4336S
UNSPSC: 39121524

$41.15

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within single-gang in-wall juntion boxes. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.

Features

Non-drift silicon light sensor with IR filter.
DC relay with zero-crossing circuitry for extended life.
Conformal coated PCB.
15-year design life.
Exceeds 10,000 ON/OFF switching cycles.
Fail ON mode.
Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC).
255 J MOV surge protection element.
Fits standard single-gang in-wall electrical boxes.
Wall Plate is included.

Documentation & Downloads

Specifications

Key Specifications

Input Voltage Rating Range(s)	120-277 VAC, 50/60 Hz (Nominal Voltage)
Color	Gray
Marketing Description	NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within single-gang in-wall juntion boxes. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.
Width	1.313 in
Country of Origin	Mexico
