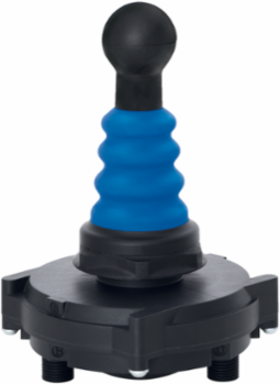

Schmersal 103012432 NK-T-42 2-Position Joystick Switch, 22.3 mm Mounting Diameter, IP67
- MPN: 103012432
- PPN: SCM-103012432
CAD
$295.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NK-T-42 2-Position Joystick Switch, 22.3 mm Mounting Diameter, IP67
Features
- Spring-return joystick switches
- Mounting hole 22.3 mm
- Mounting Knurled nut
- up to 6 mm front plate thickness
- Suitable for food processing industry
Documentation & Downloads
Specifications
Electrical data
- Operating current
- 300 mA
- Utilisation category DC-12
- 0.3 A
- Switching principle
- Reed contacts, Non-contact principle
Utilisation category DC-1230 VDC
Switching capacity, maximum7.2 W
Switching frequency1,200 /h
Mechanical data - Dimensions
- Mounting depth
- 30 mm
- Length of the actuator
- 85 mm
- Thickness, of the front panel, minimum
- 1.5 mm
- Diameter for the Installation to EN 60947-1
- 22.3 + 0.4 mm
Note (Mounting depth)Plus connectors
Mounting diameter22.3 mm
Thickness of the front panel, maximum6 mm
Spacing90 x 90 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 30 V
- Degree of pollution
- 2
Rated impulse withstand voltage U0.5 kV
General data - Features
- Return to zero position
- Yes
- External applications
- Yes
- Number of directions
- 4
- Note (Touch positions)
- Position A, B, C, D
Sealing element, additionalYes
Probing possibleYes
Number of the touch position4
Number of mechanical terminals2
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Material of the operators
- Plastic
- Material of the bellows
- Silicone
- Colour of the front ring
- Black
- Gross weight
- 160 g
Installation conditions (mechanical)arbitrarily
Material of the front ringPlastic
Material thickness of the sealing bellows1.5 mm
Colour of the bellowsBlue
Ambient conditions
- Degree of protection of the contact element
- IP67
- Ambient temperature
- -40 ... +80 °C
Degree of protection of the front panelIP67 | IP69
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Connector M12, 8-pole
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- switching angle
- 20 °
- Mounting
- central nut SW41
Mechanical life, Touch position (for each position)500,000 Operations
Actuating force, approx.11 N
Approvals - Standards
- Certificates
- BG | cULus
