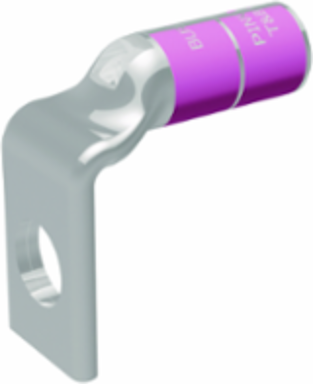

Burndy YA25L290 Hylug Terminal, 1/0 AWG, Compression, 1 Hole, 35kV Rating, Tin Plated
- MPN: YA25L290
- UPC: 781810019535
- PPN: BUR-50237X
CAD
$21.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu Tubing Hylug, 1 Hole with Inspection Window, 1/0 AWG Code,100 Navy, 600V-35kV, 1/4" stud, Standard, Compression, 0.27 in BCD, Pink
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 7/8 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - Hole Size mm | 7 mm |
| Dimension - Length Overall inch | 0.94 in |
| Dimension - Outside Diameter inch | 0.51 in |
| Dimension - Strip Length inch | 15/16 |
| Dimension - Z inch | 0.33 in |
| Dimension - B Length inch | 0.88 in |
|---|---|
| Dimension - D inch | 0.58 in |
| Dimension - L Length Overall mm | 24 mm |
| Dimension - N inch | 0.25 in |
| Dimension - Pad Width inch | 0.75 in |
| Dimension - Stud Size inch | 1/4 |
| Physical Attribute - Tongue Angle | 90 Degree |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| Standards - Industry Standards Met | UL467 |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
|---|---|
| Conductor - Copper Str Navy Size Range | 100 (61) Navy |
| Conductor - Copper Str Size Range | 1/0 |
| Conductor - Copper Str Navy Size | 100 (61) Navy |
|---|---|
| Conductor - Copper Str Size | 1/0 |
| Conductor - Material | Copper |
General
| Color Code | Pink |
|---|---|
| Die Index | 12;345 |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Type | Standard Barrel, Tin Plated |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Trade Name | HYLUG™ |
| UPC | 781810019535 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
