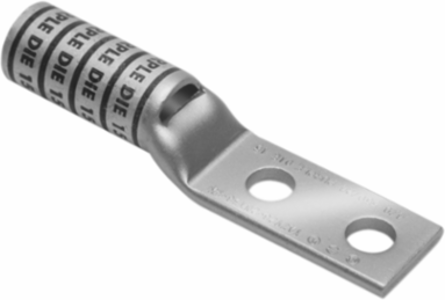

Burndy YAZV252NT14FX HYLUGTM Standard Length Barrel Terminal, 1/0 AWG, Tin Plated, 3.38 Inch
- MPN: YAZV252NT14FX
- UPC: 781810499214
- PPN: BUR-10112958
CAD
$35.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HYLUG,1/0 AWG NARROW TON
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/2 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Hole Size inch
- 0.27 in
- Dimension - L Length Overall mm
- 85 mm
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 0.48 in
- Length
- 3.38 in
Dimension - B Length inch1.50 in
Dimension - Bolt Size fraction1/4
Dimension - Hole Size mm7 mm
Dimension - Length Overall inch3.35 in
Dimension - Outside Diameter inch0.56 in
Dimension - Strip Length inch1-9/16
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 1/0 (275/#24) DLO
- Conductor - Copper Flex H Size
- 1/0 AWG
- Conductor - Copper Flex K Size
- 1/0 AWG
- Conductor - Copper Solid Size
- 1/0 AWG
- Conductor - CopperWeld Str Size
- 1/0 F AWG;1/0 G AWG;1/0 J AWG;1/0 K AWG
Conductor - Copper Flex G Size1/0 AWG
Conductor - Copper Flex I Size1/0 AWG
Conductor - Copper Flex M Size1/0 AWG
Conductor - Copper Str Size1/0
Conductor - MaterialCopper
General
- Color Code
- Pink
- Die Index
- 12;348
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810499214
Connector TypeTerminal
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
UPC 12 Digit7818104992144
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 10
