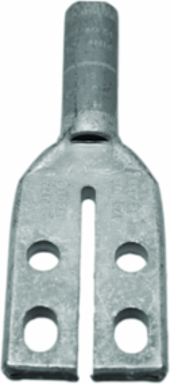

Burndy YAZ254TCG1 Copper Hylug Terminal, 1/0 AWG, 4 Holes, 1-7/16 Inch Strip Length, Tin Plated
- MPN: YAZ254TCG1
- UPC: 781810636060
- PPN: BUR-50019032
CAD
$107.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Hylug,Split Pad, 4 Holes,W/Insp Window, 1/0 AWG Code, 100 Navy, Pink, 12,348 Index, 1/4 IN Bolt Size, 1-7/16 IN Strip Length
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.38
- Dimension - E Spacing between Holes fraction
- 3/4
- Dimension - Hole Size mm
- 7
- Dimension - Length Overall inch
- 3.55
- Dimension - Outside Diameter inch
- 0.51
- Dimension - Strip Length inch
- 1-7/16
Dimension - Bolt Size fraction1/4
Dimension - Hole Size inch0.28
Dimension - L Length Overall mm35
Dimension - N inch0.31
Dimension - Pad Width inch1.38
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Size
- 1/0 AWG
Conductor - Copper Str Navy Size100 Navy
Conductor - MaterialCopper
General
- Color Code
- Pink
- Die Index
- 12;348
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 4
- Plating Type
- Tin - Electro Plated
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818106360600
Connector TypeTerminal
Feature - Barrel StyleSkived
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810636060
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
