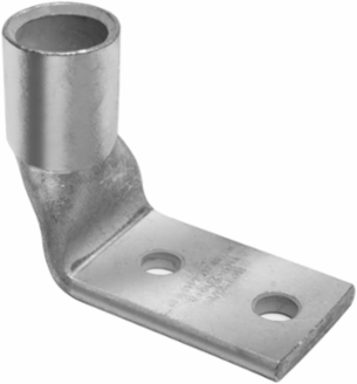

Burndy YA26N90 HYLUGTM Long Barrel Connector, 2/0 AWG Copper, 90 Degree Tongue Angle, 1-9/16 Inch Strip Length
- MPN: YA26N90
- UPC: 781810313442
- PPN: BUR-10015206
CAD
$43.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2/0STR CU-LONG-1/2-90DEG
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/2 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - D inch
- 1.27 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 1.65 in
- Dimension - Outside Diameter inch
- 0.56 in
- Dimension - Strip Length inch
- 1-9/16
- Physical Attribute - Tongue Angle
- 90 Degree
Dimension - B Length inch1.50 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm42 mm
Dimension - N inch0.63 in
Dimension - Pad Width inch0.83 in
Dimension - Z inch0.64 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 125 (61) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Size2/0 AWG
General
- Color Code
- Black
- Die Index
- 13
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin - Electro Plated
- Type
- Long Barrel, Tin Plated
- UPC 12 Digit
- 7818103134422
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810313442
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 25
