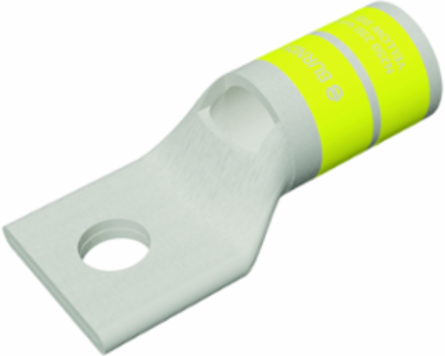

Burndy YA29L7 Tin Plated Non-Insulated Terminal, 1 Hole, 250 kcmil, 5/16 Inch Stud
- MPN: YA29L7
- UPC: 781810553305
- PPN: BUR-50235N
CAD
$32.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Code Cond, Bvl Entry, 1 Hole/W/InspWindow, 250 kcmil Str Code,250 Navy, 600 V-35 kV, 5/16" Stud, Std bbl, Tin Plated, Yellow, 16 Index.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-1/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.33 in |
| Dimension - D inch | 0.70 in |
| Dimension - L Length Overall mm | 58 mm |
| Dimension - N inch | 0.34 in |
| Dimension - Pad Width inch | 1.11 in |
| Dimension - Stud Size fraction | 5/16 |
| Dimension - Z inch | 0.36 in |
| Dimension - B Length inch | 1.06 in |
|---|---|
| Dimension - Bolt Size fraction | 5/16 |
| Dimension - Hole Size mm | 8 mm |
| Dimension - Length Overall inch | 2.30 in |
| Dimension - Outside Diameter inch | 0.75 in |
| Dimension - Strip Length inch | 1-1/8 |
| Dimension - Stud Size inch | 5/16 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| Standards - Industry Standards Met | UL467 |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size Range | N/A |
|---|---|
| Conductor - Copper Str Navy Size Range | 250 (61) Navy |
| Conductor - Copper Str Size Range | 250 kcmil |
| Conductor - Copper Str Navy Size | 250 (61) Navy |
|---|---|
| Conductor - Copper Str Size | 250 kcmil |
| Conductor - Material | Copper |
General
| Application | For Code Conductor |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Sub Brand | HYLUG |
| Type | Standard Barrel, Tin Plated |
| Color Code | Yellow |
|---|---|
| Die Index | 16 |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYLUG™ |
| UPC | 781810553305 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
