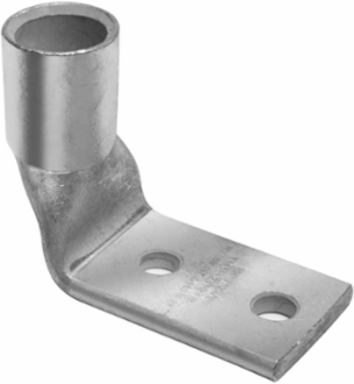

Burndy YA44L2NTCFX90 Non-Insulated Tin Plated Terminal 777.7 kcmil 1/2 Inch Stud 2 Holes

MPN: YA44L2NTCFX90
UPC: 781810021392
PPN: BUR-510465

$227.42

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Cu Comp Terminal, 2 Holes W/InspWindow, 777.7 kcmil (1925/#24)DLO (750 kcmil Flex), 1/2" Stud, 1.75" Spacing, 90 Deg Bent, Standard Brrl

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length inch	1.65 in
Dimension - Bolt Size fraction	1/2
Dimension - Hole Size inch	0.56 in
Dimension - L Length Overall mm	102 mm
Dimension - N inch	0.63 in
Dimension - Pad Width inch	2.19 in
Dimension - Stud Size inch	1/2 in
Dimension - Z inch	0.65 in

Dimension - Bolt Hole Size inch	1/2 in
Dimension - Height inch	3.29 in
Dimension - Hole Size mm	14 mm
Dimension - Length Overall inch	4.02 in
Dimension - Outside Diameter inch	1.5 in
Dimension - Strip Length inch	1-5/8 in
Dimension - Thread Size	1/2
Physical Attribute - Tongue Angle	90 Degree

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper DLO Size	777.7 (1925/#24)
Conductor - Copper Flex G Size	750
Conductor - Copper Flex H Size	750
Conductor - Copper Flex K Size	750
Conductor - Copper Solid Size	750 kcmil/FLEX
Conductor - Material	Copper

Conductor - Copper DLO Size Range	777.7 kcmil(1925/24)
Conductor - Copper Flex G Size Range	750 kcmil/FLEX
Conductor - Copper Flex I Size	750
Conductor - Copper Flex M Size	750
Conductor - Copper Str Size	750 kcmil/FLEX

General

Color Code	Yellow
Die Index	L115
Material	Copper
Physical Attribute - Tongue Type	Straight
Plating Type	Tin -Plated
Type	Standard Barrel, Tin Plated
UPC 12 Digit	7818100213922
