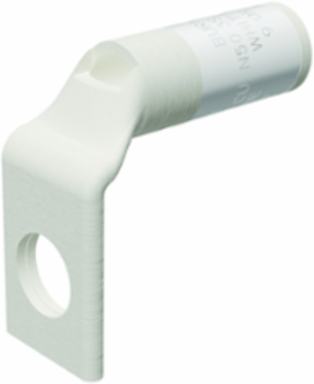

Burndy YA30L90 HYLUGTM Non-Insulated Terminal Connector, 300 kcmil, 1/2 Inch Stud, Tin Plated
- MPN: YA30L90
- UPC: 781810237670
- PPN: BUR-25020127
CAD
$43.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu code conductor standard barrel, Single hole/W/ insp window, 300kcmil, 1/2" stud, Tin plated, White, 17 or 298 index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - D inch
- 1.08 in
- Dimension - Hole Size mm
- 13 mm
- Dimension - Length Overall inch
- 1.61 in
- Dimension - Outside Diameter inch
- 0.81 in
- Dimension - Strip Length inch
- 1 in
- Dimension - Z inch
- 0.55 in
Dimension - B Length inch1.03 in
Dimension - Bolt Size fraction1/2
Dimension - Height inch1.89 in
Dimension - L Length Overall mm41 mm
Dimension - N inch0.53 in
Dimension - Pad Width inch1.20 in
Dimension - Stud Size inch1/2
Physical Attribute - Tongue Angle90 Degree
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL467
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 300 (91) Navy
- Conductor - Copper Str Size Range
- 300 kcmil
Conductor - Copper Str Navy Size300 (91) Navy
Conductor - Copper Str Size300 kcmil
Conductor - MaterialCopper
General
- Color Code
- White
- Die Index
- 17;298
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810237670
Connector TypeTerminal
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
