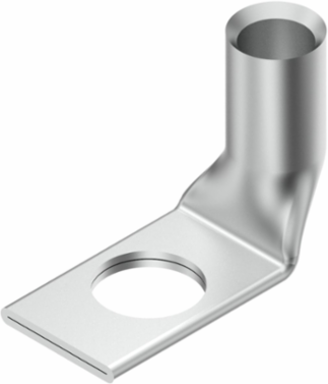

Burndy YA31LTC12FX90 HYLUGTM Standard Barrel Terminal, 1/2 Inch Stud, 250 kcmil, Tin Plated, 35 kV
- MPN: YA31LTC12FX90
- UPC: 781810314487
- PPN: BUR-10015311
CAD
$78.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing Hylug; 1 Hole with Inspection Window; 250 Flex, 637/24 DLO CLASS I,K,M; 600V-35kV; 1/2" stud; Standard; Compression; 0.53 in BCD; White
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/16 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Height inch
- 1.98 in
- Dimension - Hole Size mm
- 13 mm
- Dimension - Length Overall inch
- 1.65 in
- Dimension - Outside Diameter inch
- 0.88 in
- Dimension - Strip Length inch
- 1-1/8
- Physical Attribute - Tongue Angle
- 90 Degree
Dimension - B Length inch1.06 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size inch0.53 in
Dimension - L Length Overall mm42 mm
Dimension - N inch0.53 in
Dimension - Pad Width inch1.29 in
Dimension - Z inch0.67 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Flex I Size
- 250 kcmil
- Conductor - Copper Flex M Size
- 250 kcmil
Conductor - Copper Flex K Size250 kcmil
Conductor - MaterialCopper
General
- Color Code
- White
- Die Index
- 17;298
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810314487
Connector TypeTerminal
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
Plating TypeTin
TypeStandard Barrel, Tin Plated
UPC 12 Digit7818103144877
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 5
