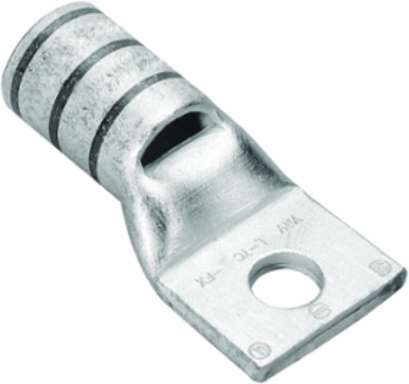

Burndy YA30LN HYLUGTM Terminal Connector, Tin Plated, 2.87 Inch Length, 1/2 Inch Stud Size, 35 kV Rating
- MPN: YA30LN
- UPC: 781810547069
- PPN: BUR-50001460
CAD
$41.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HYLUG
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length inch | 1.03 in |
|---|---|
| Dimension - L Length Overall mm | 73 mm |
| Dimension - Pad Width inch | 1.20 in |
| Dimension - Stud Size inch | 1/2 |
| Dimension - Hole Size mm | 14 mm |
|---|---|
| Dimension - Length Overall inch | 2.87 in |
| Dimension - Strip Length inch | 1 in |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Material | Copper |
|---|
General
| Color Code | White |
|---|---|
| Die Index | 17 |
| Feature - Barrel Type | Standard |
| Plated | Y |
| Trade Name | HYLUG™ |
| UPC | 781810547069 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Plating Type | Tin |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818105470699 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
