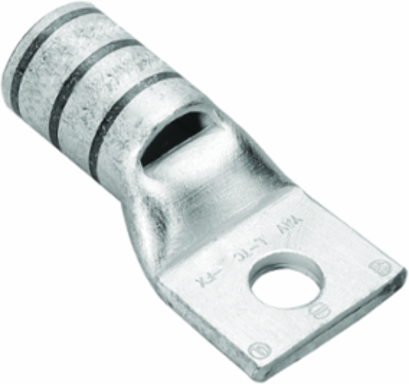

Burndy YA30LTC12FX HYLUGTM Non-Insulated Terminal, 250 kcmil, 1/2 Inch Stud, 600V-35kV
- MPN: YA30LTC12FX
- UPC: 781810033593
- PPN: BUR-50252T
CAD
$42.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, Bvl Entry, 1 Hole/W/InspWindow, 250 Flex, CLASS G: 259 Str, CLASS H:427 Str, 600 V-35 kV, 1/2" Stud, Std bbl, Yellow, 16 Index.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length inch | 1.03 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Hole Size mm | 13 mm |
| Dimension - Length Overall inch | 2.69 in |
| Dimension - Outside Diameter inch | 0.81 in |
| Dimension - Strip Length inch | 1-1/16 in |
| Dimension - Z inch | 0.55 in |
| Dimension - Bolt Hole Size inch | 0.52 in |
|---|---|
| Dimension - Hole Size inch | 0.53 in |
| Dimension - L Length Overall mm | 68 mm |
| Dimension - N inch | 0.53 in |
| Dimension - Pad Width inch | 1.20 in |
| Dimension - Stud Size inch | 1/2 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper Flex G Size | 250 kcmil |
|---|---|
| Conductor - Copper Str Size | 250 kcmil |
| Conductor - Copper Flex H Size | 250 kcmil |
|---|---|
| Conductor - Material | Copper |
General
| Application | For Flex Conductor |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Plated | Y |
| Sub Brand | HYLUG |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818100335933 |
| Color Code | Yellow |
|---|---|
| Die Index | 16 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810033593 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
