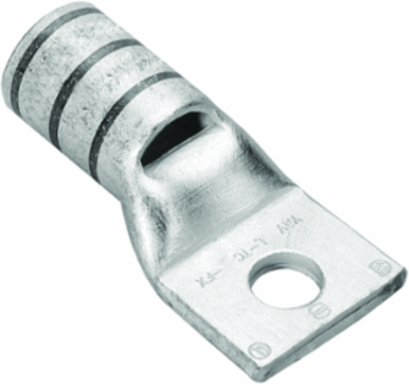

Burndy YA32LTC38FX Standard Length Barrel Terminal, 300 kcmil, 600V, 3/8 Inch Stud Size
- MPN: YA32LTC38FX
- UPC: 781810144077
- PPN: BUR-25004538
CAD
$48.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, Bvl Entry, 1 Hole/W/InspWindow, 313.1 kcmil(775/#24)DLO, 300 kcmil Flex, 600 V-35 kV, 3/8" Stud, Std bbl, Red, 18 or 324 Index.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-3/16 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Hole Size inch
- 0.41 in
- Dimension - L Length Overall mm
- 68 mm
- Dimension - N inch
- 0.41 in
- Dimension - Pad Width inch
- 1.40 in
- Dimension - Stud Size inch
- 3/8
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.19 in
Dimension - Bolt Size fraction3/8
Dimension - Hole Size mm10 mm
Dimension - Length Overall inch2.68 in
Dimension - Outside Diameter inch0.95 in
Dimension - Strip Length inch1-1/4
Dimension - Z inch0.42 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 313.1 (775/#24) DLO
- Conductor - Copper Flex G Size
- 300 kcmil
- Conductor - Copper Flex H Size
- 300 kcmil
- Conductor - Copper Flex I Size
- 300 kcmil
- Conductor - Copper Flex K Size
- 300 kcmil
- Conductor - Copper Flex M Size
- 300 kcmil
- Conductor - Material
- Copper
Conductor - Copper DLO Size Range313.1 (775/#24) DLO
Conductor - Copper Flex G Size Range300 kcmil
Conductor - Copper Flex H Size Range300 kcmil
Conductor - Copper Flex I Size Range300 kcmil
Conductor - Copper Flex K Size Range300 kcmil
Conductor - Copper Flex M Size Range300 kcmil
General
- Application
- For Flex Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Material
- Copper
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818101440777
Color CodeRed
Die Index18;324
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
Plating TypeTin
Trade NameHYLUG™
UPC781810144077
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 25
