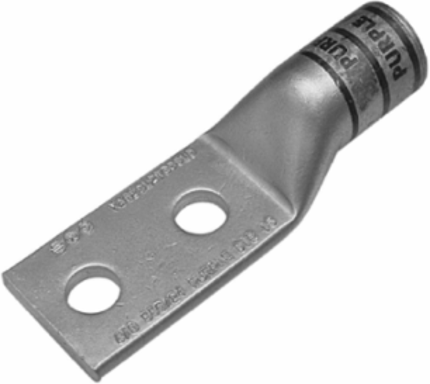

Burndy YAG34L2NTCFX HYLUGTM Terminal Connector, 2 Holes, 350 kcmil, Tin Plated, 5.11 Inch Long
- MPN: YAG34L2NTCFX
- UPC: 781810100349
- PPN: BUR-001733
CAD
$75.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing HYLUG™, 2 Holes, Tin Plated
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.27 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - Hole Size inch
- 0.56 in
- Dimension - L Length Overall mm
- 130 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 1.55 in
- Dimension - Z inch
- 0.65 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - D inch3.03 in
Dimension - Hole Size mm14 mm
Dimension - Length Overall inch5.11 in
Dimension - Outside Diameter inch1.06 in
Dimension - Strip Length inch1-5/16
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 373.7 (925/#24) DLO
- Conductor - Copper Flex H Size
- 350 kcmil
- Conductor - Copper Flex K Size
- 350 kcmil
- Conductor - Copper Flex M Size Range
- 350 kcmil
Conductor - Copper Flex G Size350 kcmil
Conductor - Copper Flex I Size350 kcmil
Conductor - Copper Flex M Size350 kcmil
Conductor - MaterialCopper
General
- Color Code
- Blue
- Die Index
- 19
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plating Type
- Tin Plated
- Trade Name
- HYLUG™
- UPC
- 781810100349
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Temperature Rating194
TypeStandard Barrel, Tin Plated
UPC 12 Digit7818101003499
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
