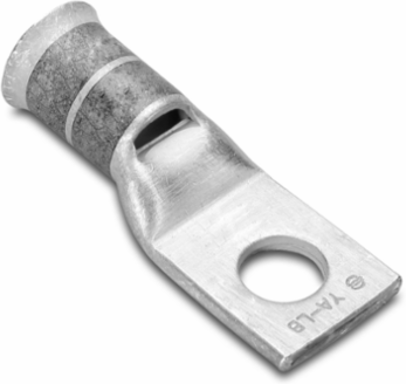

Burndy YA31LB HYLUG Standard Length Barrel Terminal, 262.6 Copper DLO, 1 Hole, 600V-35kV
- MPN: YA31LB
- UPC: 781810504963
- PPN: BUR-502444
CAD
$49.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, 1 Hole/W/InspWindow, 350 kcmil Code, N350 Navy, 250 kcmil Flex, 262.6 kcmil(650/#24)DLO, 600 V-35 kV, 1/2" Stud, Belled End.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-1/9 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.52 in |
| Dimension - Hole Size inch | 0.53 in |
| Dimension - L Length Overall mm | 74 mm |
| Dimension - N inch | 0.53 in |
| Dimension - Pad Width inch | 1.29 in |
| Dimension - Z inch | 0.55 in |
| Dimension - B Length inch | 1.10 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Hole Size mm | 13 mm |
| Dimension - Length Overall inch | 2.93 in |
| Dimension - Outside Diameter inch | 0.88 in |
| Dimension - Strip Length inch | 1-3/16 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL468A-468B |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 262.6 (650/#24) DLO |
|---|---|
| Conductor - Copper Flex K Size | 250 kcmil |
| Conductor - Copper Str Navy Size | 350 (91) Navy |
| Conductor - Material | Copper |
| Conductor - Copper Flex I Size | 250 kcmil |
|---|---|
| Conductor - Copper Flex M Size | 250 kcmil |
| Conductor - Copper Str Size | 350 kcmil |
General
| Application | For Flex Conductor |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Belled |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYLUG™ |
| UPC | 781810504963 |
| Color Code | Red |
|---|---|
| Die Index | 18;1025 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Sub Brand | HYLUG |
| Type | Standard Belled Barrel, Tin Plated |
| UPC 12 Digit | 7818105049633 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
