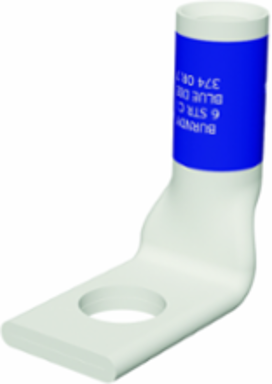

Burndy YA32L1490 HYLUGTM Terminal, 400 kcmil, 3/8 Inch Stud, Tin Plated, UL467 Certified
- MPN: YA32L1490
- UPC: 781810314814
- PPN: BUR-10015343
CAD
$57.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper HYLUGTM ,Single Hole /W/ insp window,400 kcmil,3/8" stud,19 or 470 index,Blue,Tin Plated
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-3/16 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - D inch
- 0.83 in
- Dimension - Hole Size mm
- 10 mm
- Dimension - Length Overall inch
- 1.45 in
- Dimension - Outside Diameter inch
- 0.95 in
- Dimension - Strip Length inch
- 1-1/4
- Dimension - Z inch
- 0.42 in
Dimension - B Length inch1.19 in
Dimension - Bolt Size fraction3/8
Dimension - Height inch2.19 in
Dimension - L Length Overall mm37 mm
Dimension - N inch0.41 in
Dimension - Pad Width inch1.40 in
Dimension - Stud Size inch3/8
Physical Attribute - Tongue Angle90 Degree
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL467
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 400 (127) Navy
- Conductor - Copper Str Size Range
- 400 kcmil
Conductor - Copper Str Navy Size400 (127) Navy
Conductor - Copper Str Size400 kcmil
Conductor - MaterialCopper
General
- Color Code
- Blue
- Die Index
- 19;470
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810314814
Connector TypeTerminal
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 25
