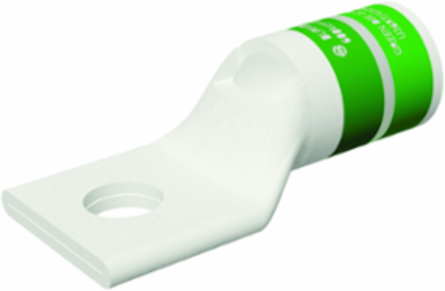

Burndy YA36L HYLUGTM Non-Insulated Terminal, 600 kcmil, 5/8 Inch Stud, Tin Plated
- MPN: YA36L
- UPC: 781810521601
- PPN: BUR-510160
CAD
$96.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Code Cond, Bvl Entry, 1 Hole/W/InspWindow, 600 kcmil Str Code, 600 V-35 kV, 5/8" Stud, Std bbl, Tin Plated, Green, 22 or 472 Index.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-3/8 in
- Dimension - Bolt Hole Size inch
- 0.66 in
- Dimension - D inch
- 1.33 in
- Dimension - L Length Overall mm
- 90 mm
- Dimension - N inch
- 0.66 in
- Dimension - Pad Width inch
- 1.74 in
- Dimension - Stud Size fraction
- 5/8
- Dimension - Z inch
- 0.67 in
Dimension - B Length inch1.38 in
Dimension - Bolt Size fraction5/8
Dimension - Hole Size mm18 mm
Dimension - Length Overall inch3.54 in
Dimension - Outside Diameter inch1.19 in
Dimension - Strip Length inch1-3/4
Dimension - Stud Size inch5/8
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL467
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Size Range
- 600 kcmil
Conductor - Copper Str Size600 kcmil
Conductor - MaterialCopper
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- Standard Barrel, Tin Plated
Color CodeGreen
Die Index22;472
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810521601
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
