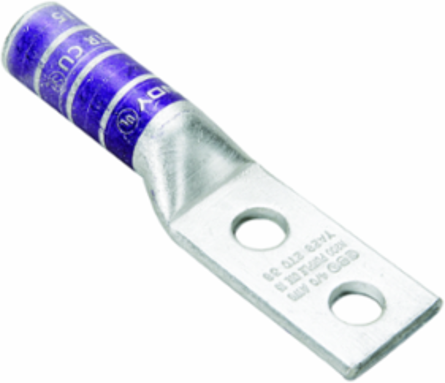

Burndy YA332N HYLUGTM Non-Insulated Tin Plated Terminal, 450 kcmil, 2 Hole, 1/2 Inch Stud Size
- MPN: YA332N
- UPC: 781810068960
- PPN: BUR-50257D
CAD
$93.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HYLUG™; YA-2N; Features: Two Hole Copper Compression Long Barrel, UL listed 90 DEG; For use on copper compression connections; RoHS Compatible,accomodates 450 kcmil
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 2-1/8 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - L Length Overall mm
- 151 mm
- Dimension - N inch
- 0.63 in
- Dimension - Pad Width inch
- 1.48 in
- Dimension - Stud Size inch
- 1/2
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch2.13 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size mm14 mm
Dimension - Length Overall inch5.93 in
Dimension - Outside Diameter inch1.01 in
Dimension - Strip Length inch2-3/16
Dimension - Z inch0.64 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Material
- Copper
Conductor - Copper Str Size450 kcmil
General
- Color Code
- Gray
- Die Index
- 326;538
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 2
- Plating Type
- Tin - Electro Plated
- Type
- Long Barrel, Tin Plated
- UPC 12 Digit
- 7818100689600
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810068960
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 6
