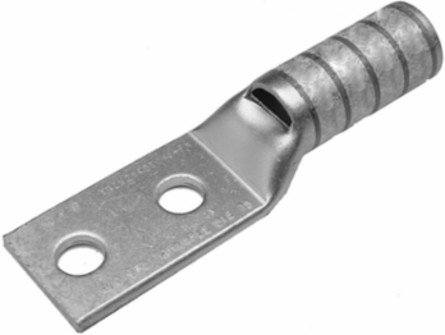

Burndy YA3C2TC14 HYLUGTM Non-Insulated Terminal Connector, 3 AWG, 35 kV, Tin Plated, 2 Holes
- MPN: YA3C2TC14
- UPC: 781810136379
- PPN: BUR-25003927
CAD
$18.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu code conductor long barrel, 2 Holes/W/O/insp W, #3 AWG,#2 SOL, 600V-35kV, 1/4" stud, Tin - Electro Plated, White, 9 Index , Not for use on #2 sol conductor.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/4 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Length Overall inch
- 2.87 in
- Dimension - Outside Diameter inch
- 0.38 in
- Dimension - Strip Length inch
- 1-5/16
- Dimension - Z inch
- 0.34 in
Dimension - B Length inch1.25 in
Dimension - Hole Size inch0.27 in
Dimension - L Length Overall mm73 mm
Dimension - N inch0.31 in
Dimension - Pad Width inch0.55 in
Dimension - Stud Size inch1/4
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 2 AWG
- Conductor - Copper Str Size
- 3 AWG
Conductor - Copper Str Navy Size50 (19) Navy
Conductor - MaterialCopper
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Material
- Copper
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- Standard Barrel, Tin Plated
Color CodeWhite
Die Index9
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810136379
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
