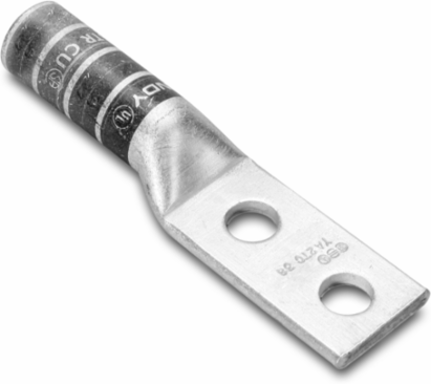

Burndy YA3C2TC14E2 HYLUG Non-Insulated Terminal Connector, 1/4 Inch Stud, 2 Hole, 35 kV
- MPN: YA3C2TC14E2
- UPC: 781810104675
- PPN: BUR-50252A
CAD
$18.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Code Cond, Bvl Entry, 2 Hole/W/O/InspWindow, #2 Sol,#3 AWG Code, 50 Navy, 600 V-35 kV, 1/4" Stud, 0.75" Spacing, Lng bbl, White, 9 Index.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/4 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Length Overall inch
- 2.99 in
- Dimension - Outside Diameter inch
- 0.38 in
- Dimension - Strip Length inch
- 1-5/16
- Dimension - Z inch
- 0.34 in
Dimension - B Length inch1.25 in
Dimension - Hole Size inch0.27 in
Dimension - L Length Overall mm76 mm
Dimension - N inch0.31 in
Dimension - Pad Width inch0.55 in
Dimension - Stud Size inch1/4
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 2 AWG
- Conductor - Copper Str Size
- 3 AWG
Conductor - Copper Str Navy Size50 (19) Navy
Conductor - MaterialCopper
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Chamfered
- Material
- Copper
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- Long Barrel, Tin Plated
Color CodeWhite
Die Index9
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810104675
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
