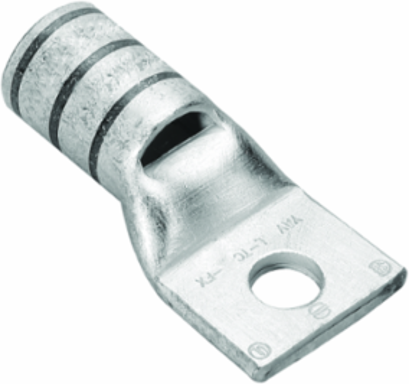

Burndy YA31LTC516FX Non-Insulated Terminal Connector, 5/16 Inch Stud, Copper, 35 kV Rating
- MPN: YA31LTC516FX
- UPC: 781810120408
- PPN: BUR-50249B
CAD
$39.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
250FX 5/16STUD
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/16 in
- Dimension - Bolt Hole Size inch
- 0.33 in
- Dimension - Hole Size inch
- 0.33 in
- Dimension - L Length Overall mm
- 60 mm
- Dimension - N inch
- 0.34 in
- Dimension - Pad Width inch
- 1.29 in
- Dimension - Stud Size inch
- 5/16
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.06 in
Dimension - Bolt Size fraction5/16
Dimension - Hole Size mm8 mm
Dimension - Length Overall inch2.37 in
Dimension - Outside Diameter inch0.88 in
Dimension - Strip Length inch1-1/8
Dimension - Z inch0.36 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Flex I Size
- 250 kcmil
- Conductor - Copper Flex M Size
- 250 kcmil
Conductor - Copper Flex K Size250 kcmil
Conductor - MaterialCopper
General
- Color Code
- White
- Die Index
- 17;298
- Material
- Copper
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810120408
Connector TypeTerminal
Feature - Barrel TypeStandard
Physical Attribute - Number of Holes1
Plating TypeTin
TypeStandard Barrel, Tin Plated
UPC 12 Digit7818101204088
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 25
