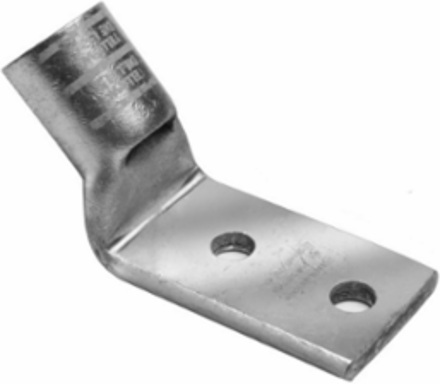

Burndy YA3C45 HYLUGTM Non-insulated Tin Plated Terminal, 2.05 Inch Length, 1.25 Inch B Length, 3 AWG Copper
- MPN: YA3C45
- UPC: 781810316047
- PPN: BUR-10015472
CAD
$24.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Copper HYLUG™, 2.05 in long
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/4 in
- Dimension - Bolt Hole Size inch
- 0.33 in
- Dimension - Hole Size inch
- 0.33 in
- Dimension - L Length Overall mm
- 52 mm
- Dimension - N inch
- 0.34 in
- Dimension - Pad Width inch
- 0.55 in
- Dimension - Z inch
- 0.36 in
Dimension - B Length inch1.25 in
Dimension - Height inch1.40 in
Dimension - Hole Size mm8 mm
Dimension - Length Overall inch2.05 in
Dimension - Outside Diameter inch0.38 in
Dimension - Strip Length inch1-5/16
Physical Attribute - Tongue Angle45 Degree
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 50 (19) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Size3 AWG
General
- Color Code
- White
- Die Index
- 9
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin
- Type
- Long Barrel, Tin Plated
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810316047
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 25
