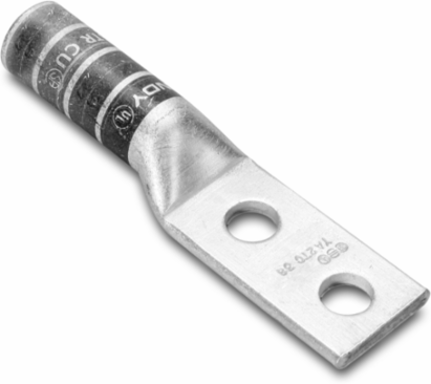

Burndy YA4C2TC14E2 Copper Hylug Connector, 4 AWG, 2-Hole, 1/4 Inch Stud, Long Barrel, 35 kV

MPN: YA4C2TC14E2
UPC: 781810019740
PPN: BUR-50239B

$18.89

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Cu Tubing Hylug, 2 Holes w/o Inspection Window, #4 AWG Code,40 Navy, 600V-35kV, 1/4" stud, Long, Compression, 0.27 in BCD, Gray

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction	1-1/8 in
Dimension - Bolt Hole Size inch	0.27 in
Dimension - Hole Size inch	0.27 in
Dimension - L Length Overall mm	72 mm
Dimension - N inch	0.31 in
Dimension - Pad Width inch	0.50 in
Dimension - Stud Size inch	1/4
Physical Attribute - Tongue Angle	Straight

Dimension - B Length inch	1.12 in
Dimension - D inch	1.40 in
Dimension - Hole Size mm	7 mm
Dimension - Length Overall inch	2.83 in
Dimension - Outside Diameter inch	0.34 in
Dimension - Strip Length inch	1-3/16
Dimension - Z inch	0.34 in

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Industry Standard(s)	UL468A-468B
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
Standards - Industry Standards Met	UL468A-468B
UL Listed	Yes

Conductor Related

Conductor - Copper DLO Size Range	N/A
Conductor - Copper Str Navy Size Range	40 (19) Navy
Conductor - Copper Str Size Range	4 AWG

Conductor - Copper Str Navy Size	40 (19) Navy
Conductor - Copper Str Size	4 AWG
Conductor - Material	Copper

General

Color Code	Gray
Die Index	8;346
Material	Copper
Physical Attribute - Tongue Type	Standard
Plating Type	Tin - Electro Plated
Trade Name	HYLUG™
UPC	781810019740

Connector Type	Terminal
Feature - Barrel Type	Standard
Physical Attribute - Number of Holes	2
Plated	Y
Temperature Rating	194
Type	Long Barrel, Tin Plated
UPC 12 Digit	7818100197400
