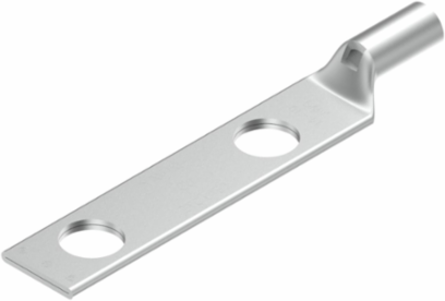

Burndy YAV102TC14E1 HYLUG Terminal Connector, Tin Plated, 2 Holes, 14-10 AWG, 35 kV Rating

MPN: YAV102TC14E1
UPC: 781810022139
PPN: BUR-518423

$16.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Cu terminal, 2 Holes/W/insp W, #14-#10 STR,#12-#10 SOL, , Tin - Electro Plated.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction	3/8 in
Dimension - Bolt Hole Size inch	0.27 in
Dimension - Hole Size inch	0.27 in
Dimension - L Length Overall mm	56 mm
Dimension - N inch	0.31 in
Dimension - Pad Width inch	0.41 in
Dimension - Stud Size inch	1/4
Physical Attribute - Tongue Angle	Straight

Dimension - B Length inch	0.38 in
Dimension - D inch	1.64 in
Dimension - Hole Size mm	7 mm
Dimension - Length Overall inch	2.22 in
Dimension - Outside Diameter inch	0.21 in
Dimension - Strip Length inch	7/16
Dimension - Z inch	0.33 in

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper DLO Size Range	N/A
Conductor - Copper Solid Size Range	12 AWG-10 AWG
Conductor - Copper Str Navy Size Range	3 (7) Navy-9 (37) Navy
Conductor - Copper Str Size Range	14 AWG-10 AWG

Conductor - Copper Solid Size	12 AWG;11 AWG;10 AWG
Conductor - Copper Str Navy Size	3 (7) Navy;4 (1) Navy;4 (7) Navy;4 (19) Navy;4 (41) Navy;6 (7) Navy;6 (19) Navy;9 (7) Navy;9 (37) Navy
Conductor - Copper Str Size	14 AWG;12 AWG;10 AWG
Conductor - Material	Copper

General

Application	For Code Conductor
Feature - Barrel Style	Chamfered
Material	Copper
Physical Attribute - Tongue Type	Standard
Plating Type	Tin - Electro Plated
Temperature Rating	194
Type	Standard Barrel, Tin Plated
UPC 12 Digit	7818100221399
