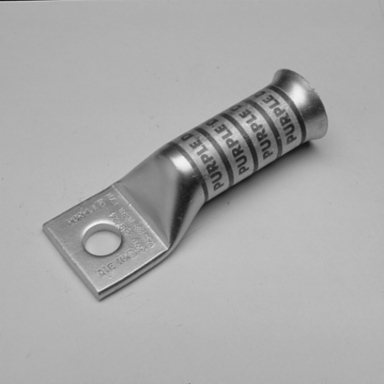

Burndy YAV1CTC516FXB HYLUGTM Copper Compression Terminal, 1 AWG, 2.60 Inch Overall Length, Tin Plated
- MPN: YAV1CTC516FXB
- UPC: 781810095232
- PPN: BUR-001443
CAD
$26.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HYLUG™ Copper tubing Compression terminals,1AwG , 75 Navy, M8 Stud, 1 Holes,Tin Plated
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.50 in
- Dimension - Hole Size inch
- 0.33 in
- Dimension - L Length Overall mm
- 66 mm
- Dimension - N inch
- 0.34 in
- Dimension - Pad Width inch
- 0.75 in
- Dimension - Z inch
- 0.36 in
Dimension - Bolt Hole Size inch0.33 in
Dimension - Hole Size mm8 mm
Dimension - Length Overall inch2.60 in
Dimension - Outside Diameter inch0.51 in
Dimension - Strip Length inch1.50 in
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 1 (225/#24) DLO
- Conductor - Copper Flex H Size
- 1 AWG
- Conductor - Copper Flex K Size
- 1 AWG
- Conductor - Material
- Copper
Conductor - Copper Flex G Size1 AWG
Conductor - Copper Flex I Size1 AWG
Conductor - Copper Flex M Size1 AWG
General
- Color Code
- Green
- Die Index
- 11
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin - Electro Plated
- Type
- Long Barrel, Tin Plated
- UPC 12 Digit
- 7818100952322
Connector TypeTerminal
Feature - Barrel StyleBelled
MaterialCopper
Physical Attribute - Tongue TypeStandard
Trade NameHYLUG™
UPC781810095232
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 50
