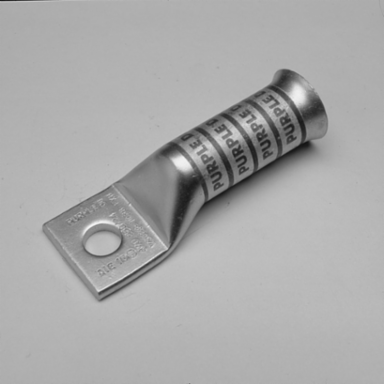

Burndy YAV25TC12FXB Non-insulated Tin Plated Terminal, 3.20 Inch Length, 1/2 Inch Stud Size, 600V-35kV
- MPN: YAV25TC12FXB
- UPC: 781810105511
- PPN: BUR-001976
CAD
$29.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
UL Listed 90° C, 600 Volts to 35kV.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.50 in
- Dimension - Hole Size inch
- 0.56 in
- Dimension - L Length Overall mm
- 81 mm
- Dimension - N inch
- 0.62 in
- Dimension - P inch
- 1.86 in
- Dimension - Strip Length inch
- 1-9/16 in
- Dimension - Z inch
- 0.64 in
Dimension - Bolt Hole Size inch0.56 in
Dimension - Hole Size mm14 mm
Dimension - Length Overall inch3.20 in
Dimension - Outside Diameter inch0.56 in
Dimension - Pad Width inch0.83 in
Dimension - Stud Size inch1/2 in
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 1/0 (275/#24) DLO
- Conductor - Copper Flex H Size
- 1/0 AWG
- Conductor - Copper Flex K Size
- 1/0 AWG
- Conductor - Copper Str Navy Size
- 100 (61) Navy
- Conductor - Material
- Copper
Conductor - Copper Flex G Size1/0 AWG
Conductor - Copper Flex I Size1/0 AWG
Conductor - Copper Flex M Size1/0 AWG
Conductor - Copper Str Size1/0
General
- Color Code
- Pink
- Die Index
- 12
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plated
- Yes
- Trade Name
- HYLUG™
- UPC
- 781810105511
Connector TypeTerminal
Feature - Barrel StyleBelled
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeLong Barrel, Tin Plated
UPC 12 Digit7818101055111
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
