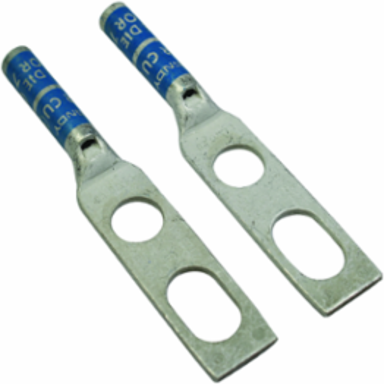

Burndy YAZV252TC38FXSL HYLUGTM Non-Insulated Terminal Connector, 1/0 AWG, 3.44 Inch Length, Tin Plated
- MPN: YAZV252TC38FXSL
- UPC: 781810532584
- PPN: BUR-30014840
CAD
$27.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CULug-1/0FX-LG-w/Port-SL,Tin - Electro Plated
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-1/2 in |
|---|---|
| Dimension - Hole Size inch | 0.40 in |
| Dimension - L Length Overall mm | 87 mm |
| Dimension - Pad Width inch | 0.83 in |
| Dimension - Stud Size inch | 3/8 |
| Dimension - B Length inch | 1.50 in |
|---|---|
| Dimension - Hole Size mm | 11 mm |
| Dimension - Length Overall inch | 3.44 in |
| Dimension - Strip Length inch | 1-9/16 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| UL Listed | Yes |
| Standards - RoHS Compliance Status | CM |
|---|
Conductor Related
| Conductor - Copper Str Size | 1/0 AWG |
|---|
| Conductor - Material | Copper |
|---|
General
| Color Code | Pink |
|---|---|
| Die Index | 12 |
| Feature - Barrel Type | Long |
| Plated | Y |
| Trade Name | HYLUG™ |
| UPC | 781810532584 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Skived |
| Material | Copper |
| Plating Type | Tin - Electro Plated |
| Type | Long Barrel, Skive |
| UPC 12 Digit | 7818105325844 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 25 |
|---|
