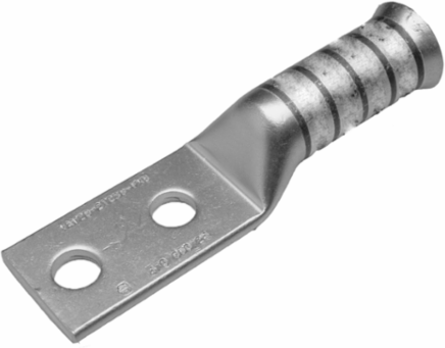

Burndy YAV262TC14FXB Copper Compression Terminal, 2/0 AWG, Long Barrel, Belled End, 1/4 Inch Stud
- MPN: YAV262TC14FXB
- UPC: 781810272602
- PPN: BUR-26001485
CAD
$37.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Two Hole Long barrel Cu Compression terminal with Belled End, Without Inspection Window , 2/0 Flex AWG, 1/4" stud
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.63 in
- Dimension - Hole Size inch
- 0.27 in
- Dimension - L Length Overall mm
- 86 mm
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 0.93 in
- Dimension - Stud Size inch
- 1/4 in
- Physical Attribute - Tongue Angle
- Straight
Dimension - Bolt Hole Size inch0.27 in
Dimension - Hole Size mm7 mm
Dimension - Length Overall inch3.40 in
Dimension - Outside Diameter inch0.63 in
Dimension - Strip Length inch1.63 in
Dimension - Z inch0.33 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 2/0 (375/#24) DLO
- Conductor - Copper Flex H Size
- 2/0 AWG
- Conductor - Copper Flex K Size
- 2/0 AWG
- Conductor - Copper Str Size
- 2/0 AWG
Conductor - Copper Flex G Size2/0 AWG
Conductor - Copper Flex I Size2/0 AWG
Conductor - Copper Flex M Size2/0 AWG
Conductor - MaterialCopper
General
- Color Code
- Black
- Die Index
- 13
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 2
- Plated
- Yes
- Trade Name
- HYLUG™
- UPC
- 781810272602
Connector TypeTerminal
Feature - Barrel StyleBelled
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeLong Barrel, Tin Plated
UPC 12 Digit7818102726022
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 25
