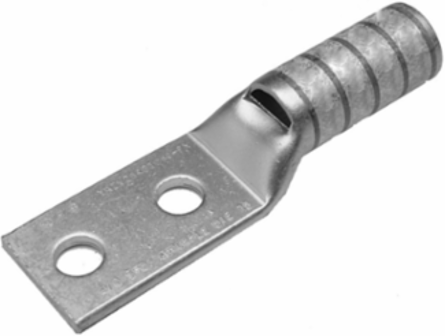

Burndy YAZV6C2TC14E2FX Non-Insulated Tin Plated Terminal Connector, 2 Hole, 6 AWG, 35 kV
- MPN: YAZV6C2TC14E2FX
- UPC: 781810228142
- PPN: BUR-25019185
CAD
$15.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, Bvl Entry, 2 Hole/W/InspWindow, #6 Weld, 6(61/#24)DLO Flex, #6 AWG Code, 600 V-35 kV, 1/4" Stud, 0.75" Spacing, Lng bbl.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 3/4 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Length Overall inch
- 2.35 in
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 0.48 in
- Dimension - Z inch
- 0.34 in
Dimension - B Length inch0.75 in
Dimension - Hole Size inch0.27 in
Dimension - L Length Overall mm60 mm
Dimension - Length Side B inch2.78 in
Dimension - Outside Diameter inch0.31 in
Dimension - Strip Length inch1-3/16
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 6 (61/#24) DLO
- Conductor - Copper Flex G Size
- 6 AWG
- Conductor - Copper Flex H Size
- 6 AWG
- Conductor - Copper Flex I Size
- 6 AWG
- Conductor - Copper Flex K Size
- 6 AWG
- Conductor - Copper Flex M Size
- 6 AWG
- Conductor - Copper Str Size
- 6 AWG
- Conductor - CopperWeld Str Size Range
- 6 A AWG-6 D AWG
Conductor - Copper DLO Size Range6 (61/#24) DLO
Conductor - Copper Flex G Size Range6 AWG
Conductor - Copper Flex H Size Range6 AWG
Conductor - Copper Flex I Size Range6 AWG
Conductor - Copper Flex K Size Range6 AWG
Conductor - Copper Flex M Size Range6 AWG
Conductor - CopperWeld Str Size6 A AWG;6 C AWG;6 D AWG
Conductor - MaterialCopper
General
- Application
- For Flex Conductors
- Connector Type
- Terminal
- Feature - Barrel Style
- Skived
- Material
- Copper
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- Long Barrel, Skive
- UPC 12 Digit
- 7818102281422
Color CodeBlue
Die Index7;374
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
Plating TypeTin
Trade NameHYLUG™
UPC781810228142
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
