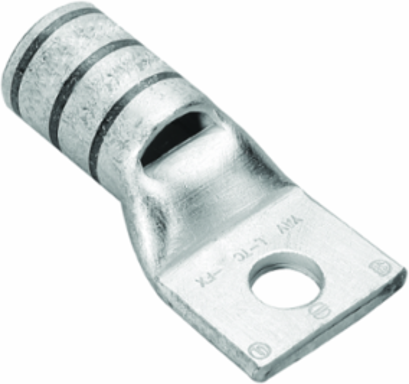

Burndy YAV6CLTC10FX HYLUGTM Non-insulated Tin Plated Terminal, 6 AWG, 35 kV, 1.30 Inch Length
- MPN: YAV6CLTC10FX
- UPC: 781810022801
- PPN: BUR-518542
CAD
$14.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing Hylug, 1 Hole with Inspection Window, #6 WELD, 6(61/#24) DLO, #6 AWG Code, 30 Navy, 600V-35kV, #10 stud, Standard, Compression, 0.21 in BCD , Blue.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1/2 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.21 in |
| Dimension - Hole Size mm | 5 mm |
| Dimension - Length Overall inch | 1.30 in |
| Dimension - Outside Diameter inch | 0.31 in |
| Dimension - Strip Length inch | 1/2 in |
| Dimension - Z inch | 0.27 in |
| Dimension - B Length inch | 0.50 in |
|---|---|
| Dimension - Hole Size inch | 0.21 in |
| Dimension - L Length Overall mm | 33 mm |
| Dimension - N inch | 0.25 in |
| Dimension - Pad Width inch | 0.48 in |
| Dimension - Stud Size inch | #10 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 6 (61/24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 6 AWG |
| Conductor - Copper Flex H Size | 6 AWG |
| Conductor - Copper Flex I Size | 6 AWG |
| Conductor - Copper Flex K Size | 6 AWG |
| Conductor - Copper Flex M Size | 6 AWG |
| Conductor - Copper Solid Size | 6 AWG |
| Conductor - Copper Str Navy Size | 30 Navy |
| Conductor - Copper Str Size | 16 mm² |
| Conductor - Material | Copper |
| Conductor - Copper DLO Size Range | 6 (61/24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 6 AWG |
| Conductor - Copper Flex H Size Range | 6 AWG |
| Conductor - Copper Flex I Size Range | 6 AWG |
| Conductor - Copper Flex K Size Range | 6 AWG |
| Conductor - Copper Flex M Size Range | 6 AWG |
| Conductor - Copper Solid Size Range | 6 AWG |
| Conductor - Copper Str Navy Size Range | 30 Navy |
| Conductor - Copper Str Size Range | 16 mm² |
General
| Application | For Flex Conductors |
|---|---|
| Connector Type | Terminal |
| Die Index | 7;374 |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYLUG™ |
| UPC | 781810022801 |
| Color Code | Blue |
|---|---|
| Construction Material - Main | Copper |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Sub Brand | HYLUG |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818100228011 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
