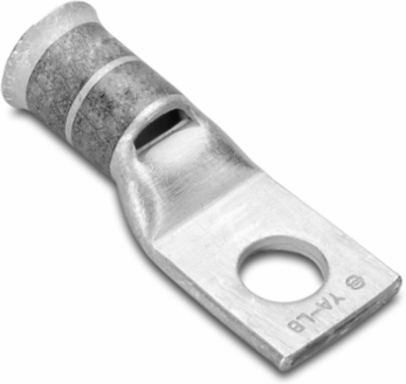

Burndy YA5CLB HYLUGTM Standard Length Barrel Terminal, 1/4 Inch Stud, 6 AWG Copper, Belled End
- MPN: YA5CLB
- UPC: 781810501870
- PPN: BUR-502101
CAD
$19.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, 1 Hole/W/InspWindow, 5 Str Code,N30 Navy, 6 Flex, 6(61/#24)DLO, 600 V-35 kV, 1/4" Stud, Belled End.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length inch | 0.81 |
|---|---|
| Dimension - Hole Size inch | 0.272 |
| Dimension - L Length Overall mm | 43.9 |
| Dimension - N inch | 0.31 |
| Dimension - Pad Width inch | 0.44 |
| Dimension - Stud Size inch | 1/4 in |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - Bolt Hole Size inch | 0.272 |
|---|---|
| Dimension - Hole Size mm | 6.91 |
| Dimension - Length Overall inch | 1.173 |
| Dimension - Outside Diameter inch | 0.3 |
| Dimension - Strip Length inch | 7/8 in |
| Dimension - Z inch | 0.328 |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL468A-468B |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 6 (61/#24) DLO |
|---|---|
| Conductor - Copper Flex H Size | 6 AWG |
| Conductor - Copper Flex K Size | 6 AWG |
| Conductor - Copper Flex M Size Range | 6 AWG |
| Conductor - Copper Str Navy Size | 30 (19) Navy |
| Conductor - Copper Str Size | 5 AWG |
| Conductor - Copper Flex G Size | 6 AWG |
|---|---|
| Conductor - Copper Flex I Size | 6 AWG |
| Conductor - Copper Flex M Size | 6 AWG |
| Conductor - Copper Solid Size | 5 AWG |
| Conductor - Copper Str Navy Size Range | 30 (19) Navy |
| Conductor - Material | Copper |
General
| Application | For Code Conductor |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Belled |
| Material | Copper |
| Physical Attribute - Tongue Type | Straight |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810501870 |
| Color Code | Blue |
|---|---|
| Die Index | 7;1014 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Sub Brand | HYLUG |
| Type | Standard Belled, Tin Plated |
| UPC 12 Digit | 7818105018700 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 50 |
|---|
