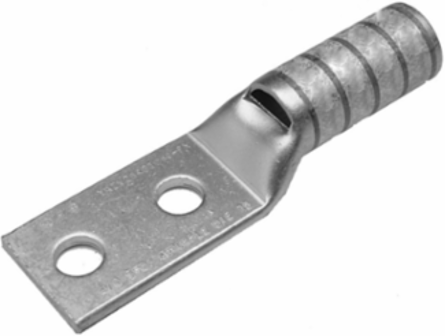

Burndy YAZV252TC14E2FX HYLUGTM Terminal Connector, 1/0 AWG, Tin Plated, 0.27 Inch Hole Size, Long Barrel
- MPN: YAZV252TC14E2FX
- UPC: 781810228401
- PPN: BUR-25019211
CAD
$31.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CULug-1/0FX-LG-w/Port-SL,Tin - Electro Plated,Dieindex 12
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 1-1/2 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - Hole Size inch | 0.27 in |
| Dimension - L Length Overall mm | 84 mm |
| Dimension - Length Side B inch | 3.32 in |
| Dimension - Outside Diameter inch | 0.56 in |
| Dimension - Strip Length inch | 1-9/16 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 1.50 in |
|---|---|
| Dimension - Bolt Size fraction | 1/4 |
| Dimension - Hole Size mm | 7 mm |
| Dimension - Length Overall inch | 3.32 in |
| Dimension - N inch | 0.31 in |
| Dimension - Pad Width inch | 0.83 in |
| Dimension - Z inch | 0.34 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 1/0 (275/#24) DLO |
|---|---|
| Conductor - Copper Flex H Size | 1/0 AWG |
| Conductor - Copper Flex K Size | 1/0 AWG |
| Conductor - Copper Str Size | 1/0 |
| Conductor - Material | Copper |
| Conductor - Copper Flex G Size | 1/0 AWG |
|---|---|
| Conductor - Copper Flex I Size | 1/0 AWG |
| Conductor - Copper Flex M Size | 1/0 AWG |
| Conductor - CopperWeld Str Size | 1/0 F AWG;1/0 G AWG;1/0 J AWG;1/0 K AWG |
General
| Color Code | Pink |
|---|---|
| Die Index | 12;348 |
| Material | Copper |
| Plated | Y |
| Trade Name | HYLUG™ |
| UPC | 781810228401 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 2 |
| Plating Type | Tin |
| Type | Long Barrel, Skive |
| UPC 12 Digit | 7818102284011 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 50 |
|---|
