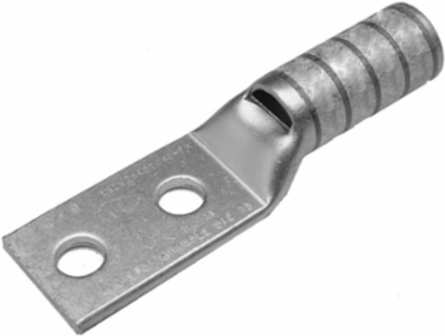

Burndy YAZ362NTCFX HYLUG Terminal Connector, 2 Hole, 450 kcmil, 1/2 Inch Bolt, 2-11/16 Inch B Length, Brown
- MPN: YAZ362NTCFX
- UPC: 781810228654
- PPN: BUR-25019236
CAD
$143.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2 Hole HYLUG Cu Compr Terminal, Long Brrl, W/ Insp Window, 444.4(1100/#24) DLO, 450 kcmil Flex, 1/2" stud, 1.75" spacing, Brown, 20 or 299 Index
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 2-11/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.56 in |
| Dimension - Hole Size inch | 0.56 in |
| Dimension - L Length Overall mm | 166 mm |
| Dimension - N inch | 0.62 in |
| Dimension - Pad Width inch | 1.74 in |
| Dimension - Z inch | 0.65 in |
| Dimension - B Length inch | 2.69 in |
|---|---|
| Dimension - Bolt Size fraction | 1/2 |
| Dimension - Hole Size mm | 14 mm |
| Dimension - Length Overall inch | 6.55 in |
| Dimension - Outside Diameter inch | 1.19 in |
| Dimension - Strip Length inch | 2-3/4 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 444.4 (1100/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 450 kcmil |
| Conductor - Copper Flex H Size | 450 kcmil |
| Conductor - Copper Flex I Size | 450 kcmil |
| Conductor - Copper Flex K Size | 450 kcmil |
| Conductor - Copper Flex M Size | 450 kcmil |
| Conductor - Material | Copper |
| Conductor - Copper DLO Size Range | 444.4 (1100/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 450 kcmil |
| Conductor - Copper Flex H Size Range | 450 kcmil |
| Conductor - Copper Flex I Size Range | 450 kcmil |
| Conductor - Copper Flex K Size Range | 450 kcmil |
| Conductor - Copper Flex M Size Range | 450 kcmil |
General
| Color Code | Brown |
|---|---|
| Die Index | 20;299 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 2 |
| Plating Type | Tin |
| Type | Long Barrel, Skive |
| UPC 12 Digit | 7818102286544 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Skived |
| Material | Copper |
| Plated | Y |
| Trade Name | HYLUG™ |
| UPC | 781810228654 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 10 |
|---|
