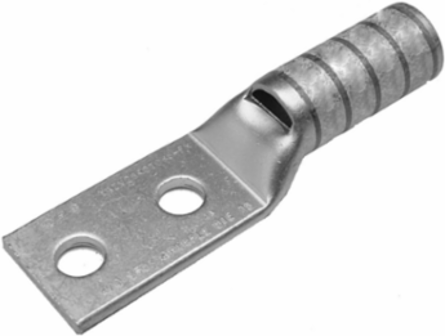

Burndy YAZ382TC38FX HYLUGTM Non-insulated Copper Terminal, 500 kcmil, 3/8 Inch Stud, 35 kV
- MPN: YAZ382TC38FX
- UPC: 781810135389
- PPN: BUR-25003849
CAD
$155.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, Bvl Entry, 2 Hole/W/InspWindow, 535.3 kcmil(1325/#24)DLO, 500 kcmil Flex, 600 V-35 kV, 3/8" Stud, 1.00" Spacing, Lng bbl.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 2-13/16 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.39 in |
| Dimension - Hole Size inch | 0.41 in |
| Dimension - L Length Overall mm | 145 mm |
| Dimension - Length Side B inch | 5.72 in |
| Dimension - Outside Diameter inch | 1.25 in |
| Dimension - Strip Length inch | 2-7/8 |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - B Length inch | 2.81 in |
|---|---|
| Dimension - Bolt Size fraction | 3/8 |
| Dimension - Hole Size mm | 10 mm |
| Dimension - Length Overall inch | 5.72 in |
| Dimension - N inch | 0.50 in |
| Dimension - Pad Width inch | 1.84 in |
| Dimension - Z inch | 0.52 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 535.3 (1325/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 500 kcmil |
| Conductor - Copper Flex H Size | 500 kcmil |
| Conductor - Copper Flex I Size | 500 kcmil |
| Conductor - Copper Flex K Size | 500 kcmil |
| Conductor - Copper Flex M Size | 500 kcmil |
| Conductor - Material | Copper |
| Conductor - Copper DLO Size Range | 535.3 (1325/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 500 kcmil |
| Conductor - Copper Flex H Size Range | 500 kcmil |
| Conductor - Copper Flex I Size Range | 500 kcmil |
| Conductor - Copper Flex K Size Range | 500 kcmil |
| Conductor - Copper Flex M Size Range | 500 kcmil |
General
| Application | For Flex Conductors |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Skived |
| Material | Copper |
| Plated | Y |
| Sub Brand | HYLUG |
| Type | Long Barrel, Skive |
| UPC 12 Digit | 7818101353899 |
| Color Code | Pink |
|---|---|
| Die Index | L99 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 2 |
| Plating Type | Tin |
| Trade Name | HYLUG™ |
| UPC | 781810135389 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 1 |
|---|
