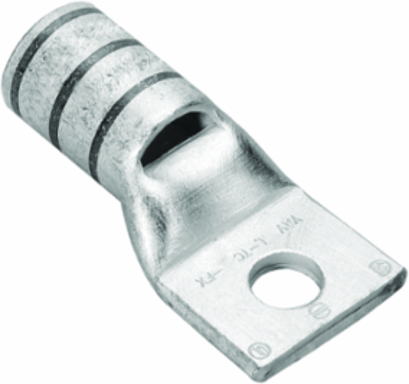

Burndy YA31LTC38FX HYLUG Non-Insulated Terminal, 250 kcmil, 35 kV, 3/8 Inch Stud
- MPN: YA31LTC38FX
- UPC: 781810020258
- PPN: BUR-50245A
CAD
$40.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, Bvl Entry, 1 Hole/W/InspWindow, 250 Flex(637/24)CLASS I,K,M, 600 V-35 kV, 3/8" Stud, Std bbl, White, 17 or 298 Index.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/16 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Hole Size inch
- 0.40 in
- Dimension - L Length Overall mm
- 64 mm
- Dimension - N inch
- 0.41 in
- Dimension - Pad Width inch
- 1.29 in
- Dimension - Stud Size inch
- 3/8
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.06 in
Dimension - Bolt Size fraction3/8
Dimension - Hole Size mm10 mm
Dimension - Length Overall inch2.50 in
Dimension - Outside Diameter inch0.88 in
Dimension - Strip Length inch1-1/8
Dimension - Z inch0.42 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Flex I Size
- 250 kcmil
- Conductor - Copper Flex M Size
- 250 kcmil
Conductor - Copper Flex K Size250 kcmil
Conductor - MaterialCopper
General
- Application
- For Flex Conductor
- Connector Type
- Terminal
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818100202588
Color CodeWhite
Die Index17;298
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin
Trade NameHYLUG™
UPC781810020258
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
