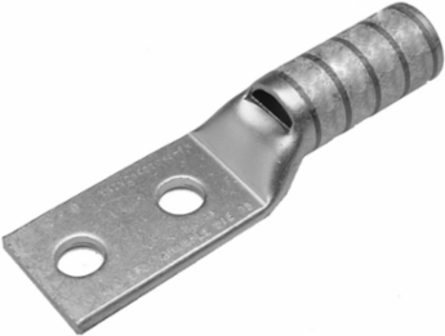

Burndy YAZ312NTCFX HYLUGTM Non-Insulated Terminal, 2 Hole, Long Barrel, Copper, 250 DLO
- MPN: YAZ312NTCFX
- UPC: 781810228609
- PPN: BUR-25019231
CAD
$59.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2 Hole HULYG Cu Compr Terminal, Long Brrl, W/ Insp Window, 250(637/#24) DLO, Class I, K, M, 1/2" stud, 1.75" spacing, White, 17 or 298 Index.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 2 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - D inch
- 3.02 in
- Dimension - Hole Size mm
- 14 mm
- Dimension - Length Overall inch
- 5.64 in
- Dimension - N inch
- 0.62 in
- Dimension - Pad Width inch
- 1.29 in
- Dimension - Thread Size
- 1/2
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch2.00 in
Dimension - Bolt Size fraction1/2
Dimension - Hole Size inch0.56 in
Dimension - L Length Overall mm143 mm
Dimension - Length Side B inch5.64 in
Dimension - Outside Diameter inch0.88 in
Dimension - Strip Length inch2-1/16
Dimension - Z inch0.65 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 250 (637/#24)
- Conductor - Copper Flex K Size
- 250
- Conductor - Material
- Copper
Conductor - Copper Flex I Size250
Conductor - Copper Flex M Size250
General
- Application
- For Flex Conductors
- Connector Type
- Terminal
- Feature - Barrel Style
- Skived
- Material
- Copper
- Plated
- Y
- Sub Brand
- HYLUG
- Trade Name
- HYLUG™
- UPC
- 781810228609
Color CodeWhite
Die Index17;298
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
Plating TypeTin
Temperature Rating194
TypeLong Barrel, Skive
UPC 12 Digit7818102286099
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 25
