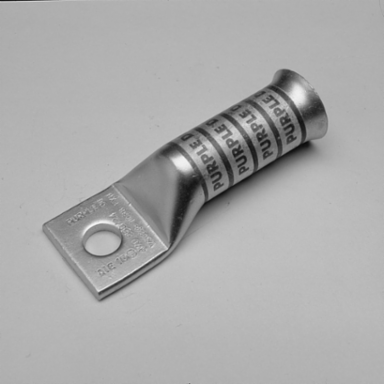

Burndy YAZV27TC12FXB Copper Compression Terminal 3/0 AWG, 1.03 Inch Pad Width, Tin-Plated
- MPN: YAZV27TC12FXB
- UPC: 781810431337
- PPN: BUR-10061491
- UNSPSC: 39121405
CAD
$39.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
HYLUG, FLEX BELLED END.
Features
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
Specifications
Key Specifications
- Country of Origin
- United States
- Conductor - Copper DLO Size Range
- 3/0 AWG
- Conductor - Copper Flex G Size Range
- 3/0 AWG
- Conductor - Copper Flex H Size Range
- 3/0 AWG
- Conductor - Copper Flex I Size Range
- 3/0 AWG
- Conductor - Copper Flex K Size Range
- 3/0 AWG
- Conductor - Copper Flex M Size Range
- 3/0 AWG
- Conductor - Copper Str Navy Size
- 150
- Conductor - Copper Str Size Range
- 3/0 AWG
- Description - Slang
- TERM FLX LG BBL SKV TEL
- Dimension - B Length inch
- 1.64 in
- Dimension - Bolt Size fraction
- 1/2
- Dimension - Hole Size fraction
- 1/2
- Dimension - Hole Size mm
- 13.5 mm
- Dimension - Length Overall inch
- 3.23 in
- Dimension - Outside Diameter inch
- 0.70 in
- Dimension - Stud Size fraction
- 1/2
- Feature - Barrel Style
- Belled;Skived
- Industry Standard(s)
- UL 486A-486B
- Physical Attribute - Tongue Angle
- Straight
- Plating Type
- Tin - Electro Plated
- Standards - RoHS Compliance Status
- CM
- Application
- Wire Termination
- Type
- Long Barrel, Skive
- Conductor Size
- 3/0 AWG
- Connector Type
- LONG BARREL
- Wire Size
- 3/0 AWG
- Class Code
- B55
- Harmonization Code
- 8535908020
- Lead Time
- 22 wk
- Die Index
- 14
- UL Listed
- Yes
- Material
- Copper
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
- Package - GTIN - Package
- 30781810431338
- Package Quantity
- 25 EA
- Standard Package Quantity
- 25
Conductor - Copper DLO Size3/0 AWG
Conductor - Copper Flex G Size"3/0 AWG"
Conductor - Copper Flex H Size"3/0 AWG"
Conductor - Copper Flex I Size"3/0 AWG"
Conductor - Copper Flex K Size"3/0 AWG"
Conductor - Copper Flex M Size"3/0 AWG"
Conductor - Copper Str Compact Size"3/0 AWG"
Conductor - Copper Str Size"3/0 AWG"
Conductor - MaterialCOPPER
Dimension - B Length fraction1-5/8 in
Dimension - Bolt Hole Size inch0.52 in
Dimension - Bolt Size inch0.5
Dimension - Hole Size inch0.53
Dimension - L Length Overall mm82 mm
Dimension - N inch0.53 in
Dimension - Pad Width inch1.03 in
Dimension - Z inch0.55 in
Feature - Barrel TypeLong
Physical Attribute - Number of Holes1
PlatedY
Product TypeTERMINAL
Trade NameHYLUG™
StandardUL 486A-486B
Voltage Rating35 kV
Conductor TypeCODE/FLEX
Finish TypeTin-Plated
Certification AgencyProposition 65
Freight Class Code16027000
Image Actual Or RepresentativeA
Sub Class CodeB55BHQF
Number of Pad Holes2
Color CodeOrange
Voltage - Maximum35000
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack00781810431337
Case - SCC-14 Next Lower Level Sub Pack30781810431338
Package - Total Units25 EA
Package Weight0.000 lb.
NAICS Code3359319102
Certifications
- CSA Approved
- Yes
- ETL
- No
cULusNo
UL RecognizedNo
