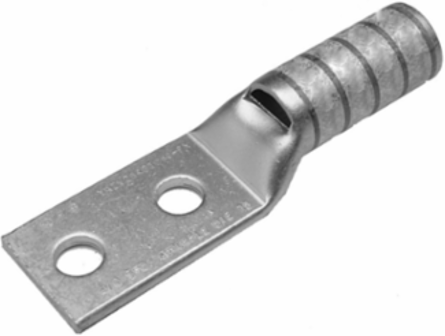

Burndy YAZV6C2TC10E2FX HYLUGTM Terminal, Long Barrel Skived, 6 AWG, 2 Hole, Tin Plated, Blue
- MPN: YAZV6C2TC10E2FX
- UPC: 781810228111
- PPN: BUR-25019182
CAD
$17.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
2 Hole HYLUG Cu Compr Terminal, Long Brrl, W/ Insp Window, 6(61/#24) DLO, #6 AWG Code, #10 stud, .75" spacing, Blue, 7 or 374 Index
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length fraction | 3/4 in |
|---|---|
| Dimension - Bolt Hole Size inch | 0.20 in |
| Dimension - Hole Size mm | 5 mm |
| Dimension - Length Overall inch | 2.22 in |
| Dimension - N inch | 0.25 in |
| Dimension - Pad Width inch | 0.48 in |
| Dimension - Z inch | 0.28 in |
| Dimension - B Length inch | 0.75 in |
|---|---|
| Dimension - Hole Size inch | 0.21 in |
| Dimension - L Length Overall mm | 56 mm |
| Dimension - Length Side B inch | 2.64 in |
| Dimension - Outside Diameter inch | 0.31 in |
| Dimension - Strip Length inch | 1-3/16 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 6 (61/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size | 6 AWG |
| Conductor - Copper Flex H Size | 6 AWG |
| Conductor - Copper Flex I Size | 6 AWG |
| Conductor - Copper Flex K Size | 6 AWG |
| Conductor - Copper Flex M Size | 6 AWG |
| Conductor - Copper Str Size | 6 AWG |
| Conductor - CopperWeld Str Size Range | 6 A AWG-6 D AWG |
| Conductor - Copper DLO Size Range | 6 (61/#24) DLO |
|---|---|
| Conductor - Copper Flex G Size Range | 6 AWG |
| Conductor - Copper Flex H Size Range | 6 AWG |
| Conductor - Copper Flex I Size Range | 6 AWG |
| Conductor - Copper Flex K Size Range | 6 AWG |
| Conductor - Copper Flex M Size Range | 6 AWG |
| Conductor - CopperWeld Str Size | 6 A AWG;6 C AWG;6 D AWG |
| Conductor - Material | Copper |
General
| Color Code | Blue |
|---|---|
| Die Index | 7;374 |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 2 |
| Plating Type | Tin |
| Type | Long Barrel, Skive |
| UPC 12 Digit | 7818102281111 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Skived |
| Material | Copper |
| Plated | Y |
| Trade Name | HYLUG™ |
| UPC | 781810228111 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 50 |
|---|
