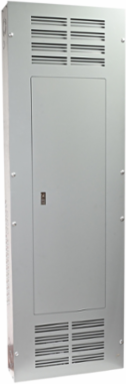

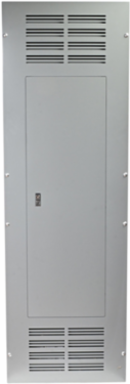

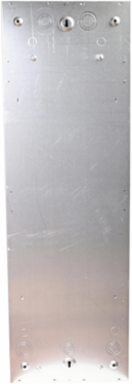

Square D NQSE142400S Panelboard interior, NQ, service entrance, main breaker, 400A, 42 pole spaces, 1 phase, 3 wire, surface mount, 20 inch
- MPN: NQSE142400S
- UPC: 785901558613
- PPN: SCH-NQSE142400S
CAD
$4421.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NQ Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NQ Panelboards are versatile panelboards that feature a wide selection of bolt-on and plug-on branch circuit breakers, integral main circuit breakers, branch mounted SPDs, and a wide variety of ready to install accessory kits. The interiors are field convertible to support top or bottom feed. This main breaker interior is Canadian service entrance rated for 400A 1 phase 3 wire applications, has a plated copper bus, and 42 pole spaces. NQ Panelboards are convertible from main lugs to main circuit breaker and vice-versa; doing so may affect the service entrance rating for Canada. The interior comes with a 20-inch wide by 62-inch tall indoor enclosure and vented surface mounted cover.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth5.75 in
Complementary Attributes
- Line Rated Current
- 400 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Circuit Breaker Type
- QO, QOB
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 161 kg CO2 eq., 160.9849356518
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 469 kg CO2 eq., 469.4894960165
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Device Short Name
- NQ
- Energy Efficiency Optimized
- False
- Mounting Mode
- surface mounting standard box
- Number Of Spaces
- 42
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 5 153 kg CO2 eq.
- Pep Code
- ENVPEP2303005EN
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; MX
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
- Recyclability Potential In %
- 91
- Width Nominal
- 20 in
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Package Weight(Lbs)
- 70.00 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Carbon Footprint Of The Distribution Phase [A4]20.1785688038, 20 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.8968440218, 0.9 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]4 502 kg CO2 eq., 4501.8493765586
Local Publishable Date2025-11-13
Stocking FlagY
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Cover Typesurface cover with door
Enclosure MaterialGalvanized Steel
Load Center Typemain breaker
Number Of Circuits42
Phase1 phase
ReturnabilityNo
Sustainable PackagingNo
Wiring Configuration3-wire
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1270 mm x 508.00 mm x 146.05 mm and NAME 1& 10- followed standard: UL 67 UL 50E and CSA22.2
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh10091.52
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
Height Nominal62 in
Certificate AgencyCSA
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 5153.3992210525
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2303005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2303005EN
Nema Degree Of ProtectionNEMA 1
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-07-15
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Phase
- 1 phase
