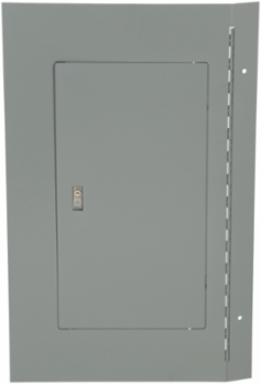

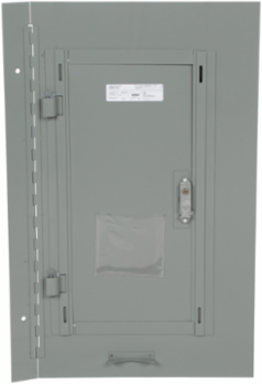

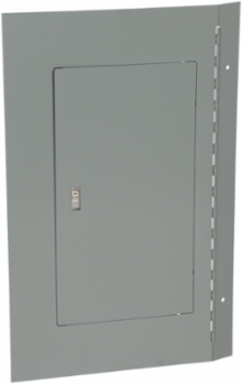

Square D NC32FHR Enclosure Cover Type 1, Flush, Hinged Door, 20 x 32 Inch, NEMA 1
- MPN: NC32FHR
- UPC: 785901396826
- PPN: SCH-NC32FHR
CAD
$322.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box and its accessories. This enclosure cover is a steel Type 1 with hinges on the right for flush mount NF and NQ panelboards. This cover is for a 20 inch width x 32 inch height box. NQ and NF enclosures are UL listed for use in the USA and Canada.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Physical Attributes
- Color
- Gray
Complementary Attributes
- Line Rated Current
- 125 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Carbon Footprint Of The Distribution Phase [A4]
- 4.1129088545958545, 4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.03284598965438543, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- N
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Enclosure Material
- steel
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 84 kg CO2 eq.
- Pep Code
- ENVPEP2509015EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 32 in
- Certificate Agency
- cULus
- Package Weight(Lbs)
- 8.618 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Carbon Footprint Of The End-of-life Phase [C1 To C4]11 kg CO2 eq., 11.081136631558648
Carbon Footprint Of The Manufacturing Phase [A1 To A3]69 kg CO2 eq., 68.5982146644179
Local Data StatusPublishable
Return IndicatorY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Cover Typeflush cover
Energy Efficiency OptimizedFalse
Product Or Component Typeflush cover
Software Versionv6.2.5-6
Tightening TorqueCover 10...12 lb.in
Type Of Front Platehinged
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity origin
Recyclability Potential, In %97
Width Nominal20 in
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 83.8251061402268
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2509015EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2509015EN
Nema Degree Of ProtectionNEMA 1
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- flush cover
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
