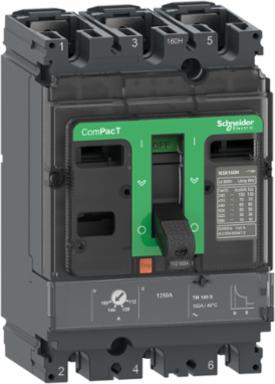

Schneider Electric C16F3TM125 Circuit breaker, ComPacT NSX160F, 36kA/415VAC, 3 poles, TMD trip unit 125A
- MPN: C16F3TM125
- PPN: SCH-C16F3TM125
CAD
$3229.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

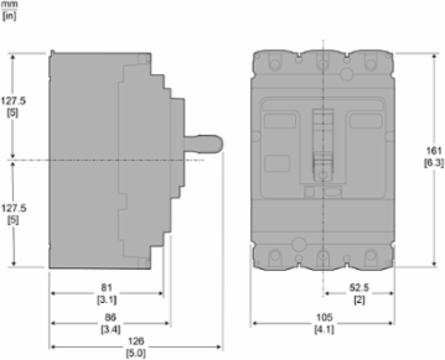

This ComPacT NSX160F is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 125A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX160F is part of Schneider Electric EcoStruxure Power architecture.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Spain, France, Indonesia, Philippines, Poland
Depth86 mm
Complementary Attributes
- Ics Rated Service Breaking Capacity
- 85 kA 220/240 V AC 50/60 Hz IEC 60947-2, 36 kA 380/415 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2, 30 kA 500 V AC 50/60 Hz IEC 60947-2, 22 kA 525 V AC 50/60 Hz IEC 60947-2, 8 kA 660/690 V AC 50/60 Hz IEC 60947-2
- Line Rated Current
- 125 A 40 °C
- Long Time Pick Up Adjustment Range
- 0.7...1 x In
- Rated Current
- 125 A
- Ui Rated Insulation Voltage
- 800 V AC 50/60 Hz
Tr Long Time Delay Adjustment Range120-400 s 1.5 x In, 15-15 s 6 x Ir
Long Time Delay Adjustment Typefixed
Long Time Pick Up Adjustment Type Iradjustable
Ue Rated Operational Voltage690 V AC 50/60 Hz
Uimp Rated Impulse Withstand Voltage8 kV
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Connection Pitch
- 35 mm
- Electrical Durability
- 40000 cycles 440 V In/2, 20000 cycles 440 V In, 15000 cycles 690 V In/2, 7500 cycles 690 V In
- Mounting Position
- horizontal and vertical, flat on the back
- Poles Description
- 3P
- Protected Poles Description
- 3D
- Range
- ComPacT
- Ics Rated Service Breaking Capacity
- 85 kA 220/240 V AC 50/60 Hz IEC 60947-2, 36 kA 380/415 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2, 30 kA 500 V AC 50/60 Hz IEC 60947-2, 22 kA 525 V AC 50/60 Hz IEC 60947-2, 8 kA 660/690 V AC 50/60 Hz IEC 60947-2
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 3.107363168124392, 3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 10 kg CO2 eq., 10.152761904761904
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Use Carbon Footprint
- 174.1905
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2304017EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2117
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- NSX160
- Device Short Name
- NSX160F
- Earth Leakage Protection
- without
- Energy Efficiency Optimized
- False
- Instantaneous Pick Up Adjustment Range
- 1250 A
- Long Time Pick Up Adjustment Range
- 0.7...1 x In
- Network Frequency
- 50/60 Hz
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- ComPacT NSX100...250
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Trip Unit Name
- TM-D
- Trip Unit Rating
- 125-125 A 40 °C
- Utilisation Category
- category A
- China Green Design Product
- Yes
- Rated Current 1
- 125 A
- Pep Code
- ENVPEP2304017EN
- Pep Verification Date
- 2023-06-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 161 mm
- Certificate Agency
- EN/IEC 60947-2
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 174.1905
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 5290.115
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Control Typetoggle
Mounting Modefixed
Mounting Supportbackplate
Product Or Component Typecircuit breaker
Protection TypeL : for overload protection (thermal), I : for short-circuit protection (magnetic)
Trip Unit Technologythermal-magnetic
Carbon Footprint Of The Distribution Phase A40.5298227016520893, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.2 kg CO2 eq., 0.1551404178814383
Carbon Footprint Of The Use Phase B2 B3 B4 B6174 kg CO2 eq., 174.1905
Local Publishable Date2025-07-10
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Applicationdistribution
Downside Connectionfront
Electrical Shock Protection Classclass II front face
Halogen Free StatusProduct contains halogen above thresholds
Instantaneous Pick Up Adjustment Type Iifixed
Mechanical Durability40000 cycles
Network TypeAC
Number Of Slots5
Power Dissipation Per Pole10.78 W
Product NameComPacT NSX
ReturnabilityNo
Suitability For Isolationyes EN/IEC 60947-2
Total Lifecycle Carbon Footprint188 kg CO2 eq.
Trip Unit Protection FunctionsLI
Upside Connectionfront
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty In Months18
Circuit Breaker Rating Code 1 Breaking Capacity36 kA
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage up to 690V AC and rated current up to 250A. This protection is ensured in accordance with the following parameters:& 10- Number of poles = 3P& 10- Rated breaking capacity = F 36kA 415V AC& 10- Tripping curve = Type C [LI = long time, instantaneous]& 10- IP degree of protection = IP40 conforming to IEC 60529& 10- IK degree of protection = IK07 conforming to IEC 62262
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; PL
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential, In %54
Width Nominal105 mm
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]173.9605
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]4437.9075
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]4437.9075
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 188.1355881924198
- Environmental Disclosure
- ENVPEP2304017EN
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2304017EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
Operating Altitude0...6561.68 ft (0...2000 m) without derating, 2000 m...5000 m with derating
Halogene PerformanceProduct contains halogen above thresholds
Mercury FreeYes
Circularity ProfileENVEOLI2304017EN
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Relative Humidity0-95 %
Pep Verification Date2023-06-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- circuit breaker
Range Of ProductComPacT NSX100...250
ETIM
- ETIM 8
- EC000228
ETIM 9EC000228
