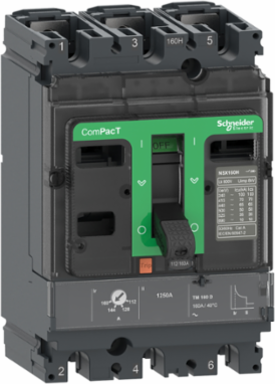

Schneider Electric C16F3TM160 Circuit breaker, ComPacT NSX160F, 36kA/415VAC, 3 poles, TMD trip unit 160A
- MPN: C16F3TM160
- PPN: SCH-C16F3TM160
CAD
$4097.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

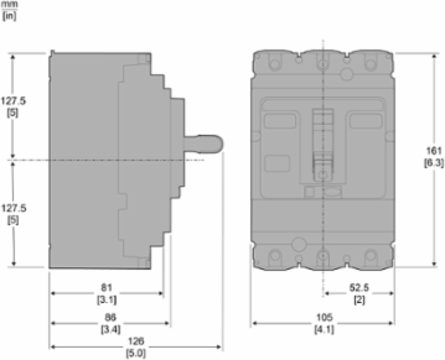

This ComPacT NSX160F is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 160A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX160F is part of Schneider Electric EcoStruxure Power architecture.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Spain, France, Indonesia, Philippines, Poland |
|---|
| Depth | 86 mm |
|---|
Complementary Attributes
| Line Rated Current | 160 A 40 °C |
|---|---|
| Rated Current | 160 A |
| Long Time Delay Adjustment Type | fixed |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Electrical Durability | 40000 cycles 440 V In/220000 cycles 440 V In15000 cycles 690 V In/2, 7500 cycles 690 V In |
| Poles Description | 3P |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 3.0938381924198253, 3 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 10 kg CO2 eq., 10.108571428571429 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Connection Pitch | 35 mm |
| Device Application | distribution |
| Downside Connection | front |
| Energy Efficiency Optimized | False |
| Mounting Mode | fixed |
| Network Frequency | 50/60 Hz |
| Number Of Poles | 3P |
| Overvoltage Category | III |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | circuit breaker |
| Protection Type | L : for overload protection (thermal)I : for short-circuit protection (magnetic) |
| Range Of Product | ComPacT NSX100...250 |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Trip Unit Name | TM-D |
| Trip Unit Rating | 160-160 A 40 °C |
| Upside Connection | front |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Rated Current 1 | 160 A |
| Pep Code | ENVPEP2304017EN |
| Pep Verification Date | 2023-06-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; PL |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 54 |
| Width Nominal | 105 mm |
| [Ics] Rated Service Breaking Capacity | 85 kA 220/240 V AC 50/60 Hz IEC 60947-236 kA 380/415 V AC 50/60 Hz IEC 60947-235 kA 440 V AC 50/60 Hz IEC 60947-230 kA 500 V AC 50/60 Hz IEC 60947-222 kA 525 V AC 50/60 Hz IEC 60947-28 kA 660/690 V AC 50/60 Hz IEC 60947-2 |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Long Time Pick-up Adjustment Range | 0.7...1 x In |
| Instantaneous Pick-up Adjustment Type Ii | fixed |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 1.786 kg |
| Warranty (In Months) | 18 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 0.6039 |
| Customs Code | 8536200020 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Position | horizontal and vertical, flat on the back |
| Carbon Footprint Of The Distribution Phase [A4] | 0.5275166180758017, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.2 kg CO2 eq., 0.15446516034985425 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 227 kg CO2 eq., 227.487744 |
| Local Publishable Date | 2025-07-10 |
| Stocking Flag | Y |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2304017EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2117 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | NSX160 |
| Control Type | toggle |
| Device Short Name | NSX160F |
| Electrical Shock Protection Class | class II front face |
| Mechanical Durability | 40000 cycles |
| Mounting Support | backplate |
| Network Type | AC |
| Number Of Slots | 5 |
| Power Dissipation Per Pole | 13.95 W |
| Product Name | ComPacT NSX |
| Protected Poles Description | 3D |
| Range | ComPacT |
| Returnability | No |
| Suitability For Isolation | yes EN/IEC 60947-2 |
| Total Lifecycle Carbon Footprint | 241 kg CO2 eq. |
| Trip Unit Protection Functions | LI |
| Trip Unit Technology | thermal-magnetic |
| Utilisation Category | category A |
| China Green Design Product | Yes |
| Circuit Breaker Rating Code 1 Breaking Capacity | 36 kA |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage up to 690V AC and rated current up to 250A. This protection is ensured in accordance with the following parameters:& 10- Number of poles = 3P& 10- Rated breaking capacity = F 36kA 415V AC& 10- Tripping curve = Type C [LI = long time, instantaneous]& 10- IP degree of protection = IP40 conforming to IEC 60529& 10- IK degree of protection = IK07 conforming to IEC 62262 |
| Functional-unit Unit | unité (unit) |
| Energy Consumption On Product Lifetime In Kwh | 555.0336 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Height Nominal | 161 mm |
| Certificate Agency | EN/IEC 60947-2 |
| [Tr] Long-time Delay Adjustment Range | 120-400 s 1.5 x In15-15 s 6 x Ir |
| [Ui] Rated Insulation Voltage | 800 V AC 50/60 Hz |
| Instantaneous Pick-up Adjustment Range | 1250 A |
| Earth-leakage Protection | without |
| Long Time Pick-up Adjustment Type Ir | adjustable |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 2449.92 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 0.6039 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -50-85 °C, -50-85 °C |
| Halogene Performance | Product contains halogen above thresholds |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2304017EN |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | IP40 conforming to IEC 60529 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2304017EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 241.37213539941692 |
| Environmental Disclosure | ENVPEP2304017EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Operating Altitude | 0...6561.68 ft (0...2000 m) without derating2000 m...5000 m with derating |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 0-95 % |
| Pep Verification Date | 2023-06-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | circuit breaker |
|---|
| Range Of Product | ComPacT NSX100...250 |
|---|
ETIM
| ETIM 8 | EC000228 |
|---|
| ETIM 9 | EC000228 |
|---|
